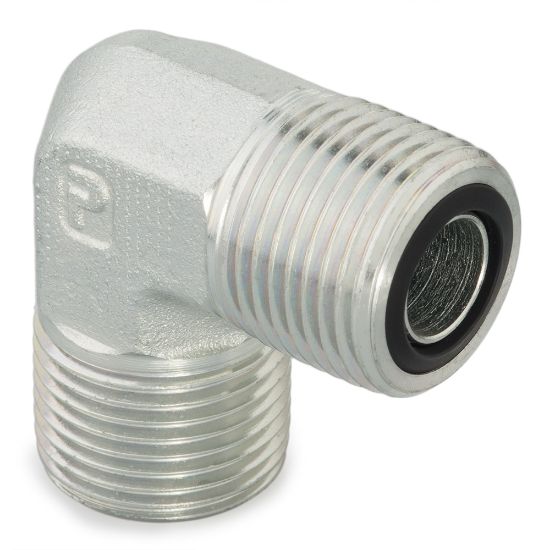

Picture of 10 ELO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10 ELO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
Estimated Lead Time: 38 days
Partner Available:Backordered
SKU 10 ELO-S FKM
$26.36/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialSteel
Connection TypeO-ring Face SealSpecifications MetSAE J1453
Maximum Dynamic Pressure6000 psiConnection 4 Tube Outside Diameterna
Shape90° ElbowConnection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 2 Tube Outside Diameter5/8 inchConnection 3 Tube Outside Diameterna
O-Ring Material90 Durometer FluorocarbonConnection 1 TypeMale O-Ring Face Seal
Connection 2 TypeMale O-Ring Face SealConnection 3 Typena
Connection 4 TypenaDimensional Weight0.05431767086330935 lb
