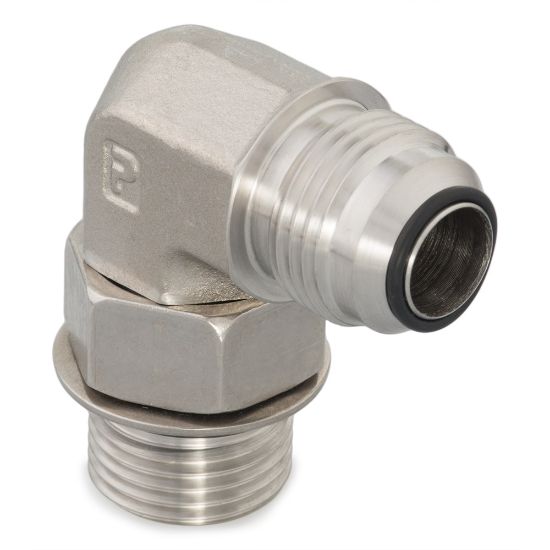

4 C5OXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 4 C5OXO-SS

$59.70/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 2 Thread Size (inch)	7/16-20	Connection 2 Style	Male SAE-ORB
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Male 37° Flare with O-ring Seal on Nose
Connection 1 Tube O.D. (inch)	1/4	Body Material	Stainless Steel
Maximum Dynamic Pressure	6000 psi	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	na
Connection 3 Size	na	Connection Type	Soft Seal Stainless Steel 37° Flare

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
