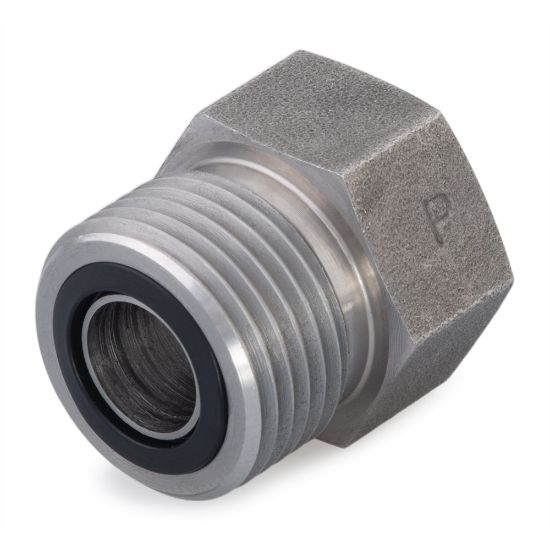

Picture of 10 LOHB3-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10 LOHB3-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
4 in stock
Kansas City, KS4
Partner Available:Backordered
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 10 LOHB3-S
$10.32/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialSteel
Maximum Dynamic Pressure6000 psiShapeStraight
Dimensional Weight0.031160071942446042 lbO-Ring Material90 Durometer Nitrile
Specifications MetSAE J1453Connection TypeO-ring Face Seal
Connection 1 TypeMale O-Ring Face SealConnection 3 Typena
Connection 4 TypenaConnection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter14, 15, 16 mm
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 2 Tube Outside Diameter5/8 inchConnection 2 TypeFemale Braze Socket
