Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's O-ring Face Seal (ORFS) Tube Fittings and Adapters, Seal-Lok, meet or exceed the requirements of both SAE J1453 and ISO 8434-3 and have international acceptance. O-ring face seal fittings offer zero clearance, resistance to over torque and vibration resistance making it an ideal reusable hydraulic fitting solution across many markets. Seal-Lok tube fittings and adapters come in steel and stainless steel. Parker's Trap-Seal for ORFS improves customer experience by eliminating potential hydraulic leaks caused by O-ring fall-out and O-ring pinch during assembly. This provides customers a competitive advantage while leading to reduced overall cost.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Highly resistant to over-torque, withstanding 200% torque above the rated value without any damage to the fitting, creating unlimited reusability.
• Flat sealing surface allows for zero clearance installation.
• Suitable for a wide range of wall thicknesses and are adaptable to inch tube, metric tube and hose.
• Patented Trap-Seal design provides optimal seal retention in ORFS CORG groove and prevents seal pinch during assembly.
• Patent-pending FastSeal connection technology is new way to make fast, leak-free ORFS tube connections without the need for brazing or flanging equipment. Only a wrench and tube is needed. FastSeal is available under the Seal-Lok Nut selection option. See the Product Support tab for more information on FastSeal.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Offered in steel and stainless steel in sizes 1/4" through 2” with working pressures up to 9200 psi.
Applications:
• Hydraulic fluid and gas handling connections
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Highly resistant to over-torque, withstanding 200% torque above the rated value without any damage to the fitting, creating unlimited reusability.
• Flat sealing surface allows for zero clearance installation.
• Suitable for a wide range of wall thicknesses and are adaptable to inch tube, metric tube and hose.
• Patented Trap-Seal design provides optimal seal retention in ORFS CORG groove and prevents seal pinch during assembly.
• Patent-pending FastSeal connection technology is new way to make fast, leak-free ORFS tube connections without the need for brazing or flanging equipment. Only a wrench and tube is needed. FastSeal is available under the Seal-Lok Nut selection option. See the Product Support tab for more information on FastSeal.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Offered in steel and stainless steel in sizes 1/4" through 2” with working pressures up to 9200 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Dimensional Weight | Maximum Dynamic Pressure | O-Ring Material | Specifications Met | Connection Type | Connection 3 Type | Connection 4 Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 4 Tube Outside Diameter | Shape | Connection 1 Type | Connection 2 Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-8 TL-S | Backordered | Backordered | $8.33/each | EA | Steel | 0.019784172661870502 lb | na | na | SAE J1453 | O-ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Sleeve | Braze Sleeve Reducer | Braze Sleeve | |

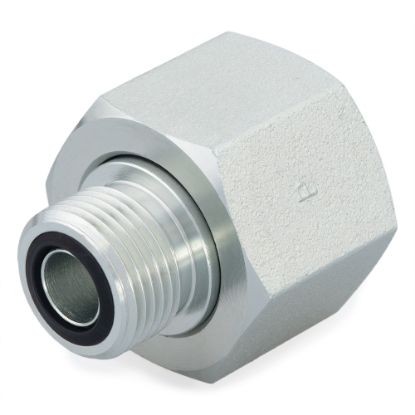

| 10-8 TRLON-S | 19 in stock | 185 in stock | $17.87/each | EA | Steel | 0.07913669064748201 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | na | na | 14, 15, 16 mm | 1/2 inch | na | na | Straight | Female O-Ring Face Seal with Large Nut | Male O-Ring Face Seal Tube End | |
| 10-8 TRLO-S | 9 in stock | 153 in stock | $13.27/each | EA | Steel | 0.024673111510791365 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | na | na | 5/8 inch | 12 mm | na | na | Straight | Flat Face - No Nut | Male O-Ring Face Seal Tube End | |
| 10-8 V5OLO-S | 18 in stock | 114 in stock | $35.66/each | EA | Steel | 0.07256797503173933 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | 3/4-16 inch | na | 14, 15, 16 mm | na | na | na | 45° Elbow | Male O-Ring Face Seal | Male SAE-ORB | |
| 10-8 V5OLO-S FKM | Backordered | Backordered | $43.20/each | EA | Steel | 0.003956834532374101 lb | 6000 psi | 90 Durometer Fluorocarbon | SAE J1453 | Tube to SAE Straight Thread | na | na | 3/4-16 inch | na | 14, 15, 16 mm | na | na | na | 45° Elbow | Male O-Ring Face Seal | Male SAE-ORB | |
| 10-8F5OMLOS | Backordered | Backordered | $9.95/each | EA | Steel | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Straight | Male O-Ring Face Seal | Male SAE-ORB | ||
| 10BMLS | Backordered | 40 in stock | $7.18/each | EA | Steel | 0.017985611510791366 lb | na | na | SAE J1453 | O-ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Nut with Metric Hex | Female O-Ring Face Seal | na | |
| 10C4OMLOS | Backordered | 5 in stock | $47.00/each | EA | Steel | 0.1079136690647482 lb | 4000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | 90° Elbow | Male O-Ring Face Seal | Male BSPP O-Ring Retaining Ring | |
| 10C6MLOS | Backordered | 6 in stock | $37.39/each | EA | Steel | 0.19784172661870503 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | na | na | 14, 15, 16 mm | 14, 15, 16 mm | na | na | 90° Elbow | Male O-Ring Face Seal | Female O-Ring Face Seal Swivel | |
| 10EMLOS | Backordered | Backordered | $26.28/each | EA | Steel | 0.07913669064748201 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | Tube to Tube with Metric Hex | na | na | na | na | 5/8 inch | 14, 15, 16 mm | na | na | 90° Elbow | Male O-Ring Face Seal | Male O-Ring Face Seal | |
| 10F42EDMLOS | Backordered | 19 in stock | $18.88/each | EA | Steel | 0.1079136690647482 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | 1/2-14 inch | na | 14, 15, 16 mm | na | na | na | Straight | Male O-Ring Face Seal | Male BSPP ED Seal | |
| 10F42EDMLOSS | Backordered | Backordered | $166.73/each | EA | Stainless Steel | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | na | na | 1/2-14 inch | na | 14, 15, 16 mm | na | na | na | Straight | Male O-Ring Face Seal | Male BSPP ED Seal | ||

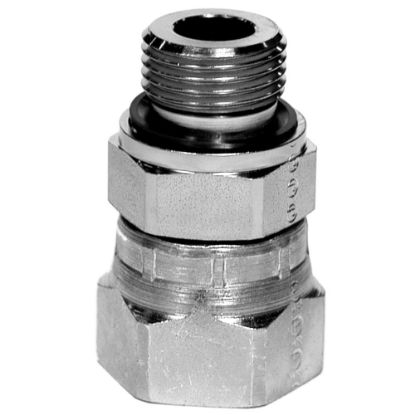

| 10F642EDMLS | Backordered | 2 Limited Stock | $56.20/each | EA | Steel | 6000 psi | 90 Durometer Nitrile | SAE J1453 | Tube to SAE Straight Thread | na | na | na | na | 14, 15, 16 mm | 1/2-14 mm | na | na | Straight | Female O-Ring Face Seal Swivel | Male BSPP ED Seal | ||
| 10FNMLS | Backordered | 5 in stock | $22.02/each | EA | Steel | 6000 psi | na | SAE J1453 | na | na | na | na | na | 5/8 inch | na | na | na | Cap with Metric Hex | Female O-Ring Face Seal | na | ||
| 10HMLOS | Backordered | Backordered | $11.94/each | EA | Steel | 6000 psi | 90 Durometer Nitrile | SAE J1453 | Tube to Tube with Metric Hex | na | na | na | na | 14, 15, 16 mm | 14, 15, 16 mm | na | na | Straight | Male O-Ring Face Seal | Male O-Ring Face Seal | ||
| 10JMLOS | Backordered | Backordered | $37.53/each | EA | Steel | 0.12336555755395684 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453 | O-ring Face Seal | Male O-Ring Face Seal | na | na | na | 14, 15, 16 mm | 14, 15, 16 mm | 5/8 inch | na | Tee | Male O-Ring Face Seal | Male O-Ring Face Seal | |
| 10M18C87OMLOS | Backordered | 6 in stock | $38.35/each | EA | Steel | 0.06452338129496403 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453, ISO 8434-3 | Tube to ISO 6149 | na | na | M18x1.5 mm | na | 5/8 inch | na | na | na | 90° Elbow | Male O-Ring Face Seal | Male ISO 6149 | |
| 10M18C87OMLOS FKM | Backordered | Backordered | $46.02/each | EA | Steel | 0.060431654676258995 lb | 6000 psi | 90 Durometer Fluorocarbon | SAE J1453, ISO 8434-3 | Tube to ISO 6149 | na | na | na | na | 14, 15, 16 mm | na | na | na | 90° Elbow | Male O-Ring Face Seal | Male ISO 6149 | |
| 10M18C8OMLOS | Backordered | Backordered | $32.30/each | EA | Steel | 3600 psi | 90 Durometer Nitrile | SAE J1453 | Tube to Metric-ORR | na | na | na | na | 14, 15, 16 mm | na | na | na | 90° Elbow | Male O-Ring Face Seal | Male Metric O-Ring Retaining Ring | ||
| 10M18F87OMLOS | Backordered | 3 in stock | $10.12/each | EA | Steel | 0.04112185251798561 lb | 6000 psi | 90 Durometer Nitrile | SAE J1453, ISO 8434-3 | Tube to ISO 6149 | na | na | M18x1.5 mm | na | 5/8 inch | na | na | na | Straight | Male O-Ring Face Seal | Male ISO 6149 |
