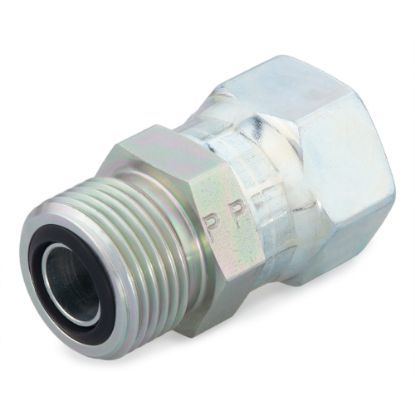

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's O-ring Face Seal (ORFS) Tube Fittings and Adapters, Seal-Lok, meet or exceed the requirements of both SAE J1453 and ISO 8434-3 and have international acceptance. O-ring face seal fittings offer zero clearance, resistance to over torque and vibration resistance making it an ideal reusable hydraulic fitting solution across many markets. Seal-Lok tube fittings and adapters come in steel and stainless steel. Parker's Trap-Seal for ORFS improves customer experience by eliminating potential hydraulic leaks caused by O-ring fall-out and O-ring pinch during assembly. This provides customers a competitive advantage while leading to reduced overall cost.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Highly resistant to over-torque, withstanding 200% torque above the rated value without any damage to the fitting, creating unlimited reusability.
• Flat sealing surface allows for zero clearance installation.
• Suitable for a wide range of wall thicknesses and are adaptable to inch tube, metric tube and hose.
• Patented Trap-Seal design provides optimal seal retention in ORFS CORG groove and prevents seal pinch during assembly.
• Patent-pending FastSeal connection technology is new way to make fast, leak-free ORFS tube connections without the need for brazing or flanging equipment. Only a wrench and tube is needed. FastSeal is available under the Seal-Lok Nut selection option. See the Product Support tab for more information on FastSeal.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Offered in steel and stainless steel in sizes 1/4" through 2” with working pressures up to 9200 psi.
Applications:
• Hydraulic fluid and gas handling connections
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Highly resistant to over-torque, withstanding 200% torque above the rated value without any damage to the fitting, creating unlimited reusability.
• Flat sealing surface allows for zero clearance installation.
• Suitable for a wide range of wall thicknesses and are adaptable to inch tube, metric tube and hose.
• Patented Trap-Seal design provides optimal seal retention in ORFS CORG groove and prevents seal pinch during assembly.
• Patent-pending FastSeal connection technology is new way to make fast, leak-free ORFS tube connections without the need for brazing or flanging equipment. Only a wrench and tube is needed. FastSeal is available under the Seal-Lok Nut selection option. See the Product Support tab for more information on FastSeal.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Offered in steel and stainless steel in sizes 1/4" through 2” with working pressures up to 9200 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Maximum Dynamic Pressure | Shape | O-Ring Material | Connection Type | Connection 1 Type | Connection 3 Type | Connection 4 Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 4 Tube Outside Diameter | Connection 2 Type | Dimensional Weight | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10M18F87OMLOS FKM | Backordered | Backordered | $12.15/each | EA | Steel | 6000 psi | Straight | 90 Durometer Fluorocarbon | O-ring Face Seal | Male O-Ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Male ISO 6149 | 0.0026378896882494 lb | SAE J1453, ISO 8434-3 | |
| 10M22C87OMLOS | 7 in stock | 95 in stock | $30.89/each | EA | Steel | 6000 | 90° Elbow | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | na | na | na | na | 5/8 | na | na | na | Male ISO 6149 | 0.10280463129496402 | SAE J1453, ISO 8434-3 | |
| 10M22C87OMLOS FKM | Backordered | Backordered | POR | EA | Steel | 6000 psi | 90° Elbow | 90 Durometer Fluorocarbon | Tube to ISO 6149 | Male O-Ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Male ISO 6149 | 0.062110311750599514 lb | SAE J1453, ISO 8434-3 | |
| 10M22C8OMLOS | Backordered | 20 in stock | $32.41/each | EA | Steel | 6000 psi | 90° Elbow | 90 Durometer Nitrile | Tube to Metric-ORR | Male O-Ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Male Metric O-Ring Retaining Ring | 0.19784172661870503 lb | SAE J1453 | |
| 10M22F682EDMLS | Backordered | 2 Limited Stock | $176.25/each | EA | Steel | 6000 psi | Straight | 90 Durometer Nitrile | Tube to SAE Straight Thread | Female O-Ring Face Seal Swivel | na | na | M22X1.5 | na | 5/8 inch | na inch | na | na | Male metric thread - ED seal (ISO 9974) | SAE J1453 | ||
| 10M22F82EDMLOS | Backordered | 10 in stock | $14.35/each | EA | Steel | 6000 psi | Straight | 90 Durometer Nitrile | Tube to BSPP-ED | Male O-Ring Face Seal | na | na | M22x1.5 mm | na | 14, 15, 16 mm | na | na | na | Male BSPP ED Seal | 0.0539568345323741 lb | SAE J1453 | |
| 10M22F87OMLOS | 9 in stock | 78 in stock | $10.70/each | EA | Steel | 6000 psi | Straight | 90 Durometer Nitrile | Tube to ISO 6149 | Male O-Ring Face Seal | na | na | M22x1.5 mm | na | 14, 15, 16 mm | na | na | na | Male ISO 6149 | 0.047448291366906474 lb | SAE J1453, ISO 8434-3 | |
| 10M22R87OMLOS | Backordered | 2 Limited Stock | $57.45/each | EA | Steel | 6000 psi | Tee | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | Male O-Ring Face Seal | na | M22x1.5 mm | na | 14, 15, 16 mm | na | 14, 15, 16 mm | na | Male ISO 6149 | 0.12336555755395684 lb | SAE J1453, ISO 8434-3 | |
| 10M22R87OMLOS FKM | Backordered | Backordered | $68.94/each | EA | Steel | 6000 psi | Tee | 90 Durometer Fluorocarbon | Run Tee | Male O-Ring Face Seal | Male O-Ring Face Seal | na | M22x1.5 mm | na | 5/8 inch | na | 5/8 inch | na | Male ISO 6149 | 0.39568345323741005 lb | SAE J1453, ISO 8434-3 | |
| 10M22S87OMLOS | Backordered | Backordered | $57.45/each | EA | Steel | 6000 psi | Tee | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | Male ISO 6149 | na | na | na | 14, 15, 16 mm | 5/8 inch | na | na | Male O-Ring Face Seal | SAE J1453, ISO 8434-3 | ||
| 10M22S87OMLOS FKM | Backordered | Backordered | $68.94/each | EA | Steel | 6000 psi | Tee | 90 Durometer Fluorocarbon | Branch Tee | Male O-Ring Face Seal | Male ISO 6149 | na | na | M22X1.5 mm | 5/8 inch | 14, 15, 16 mm | na | na | Male O-Ring Face Seal | SAE J1453, ISO 8434-3 | ||
| 10M22V87OMLOS | Backordered | 2 Limited Stock | $33.55/each | EA | Steel | 6000 psi | 45° Elbow | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | na | na | M22x1.5 mm | na | 14, 15, 16 mm | na | na | na | Male ISO 6149 | 0.07742805755395683 lb | SAE J1453, ISO 8434-3 | |
| 10M27F87OMLOS | Backordered | 8 in stock | $12.56/each | EA | Steel | 6000 psi | Straight | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | na | na | na | na | 14, 15, 16 mm | na | na | na | Male ISO 6149 | 0.07742805755395683 lb | SAE J1453, ISO 8434-3 | |
| 10M27F87OMLOS FKM | Backordered | Backordered | $15.22/each | EA | Steel | 6000 psi | Straight | 90 Durometer Fluorocarbon | Tube to ISO 6149 | Male O-Ring Face Seal | na | na | M27X2 mm | na | 5/8 inch | na | na | na | Male ISO 6149 | 0.6232014388489209 lb | SAE J1453, ISO 8434-3 | |
| 10PNMLOS | Backordered | Backordered | $40.99/each | EA | Steel | 6000 psi | Plug with Metric Hex | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | na | na | na | na | 5/8 inch | na | na | na | na | SAE J1453 | ||
| 10R4OMLOS | Backordered | Backordered | $231.89/each | EA | Steel | 4000 psi | Tee | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | Male O-Ring Face Seal | na | na | na | 5/8 inch | na | 5/8 inch | na | Male BSPP O-Ring Retaining Ring | SAE J1453 | ||
| 10R6MLOS | Backordered | Backordered | $48.94/each | EA | Steel | 6000 psi | Tee | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | Male O-Ring Face Seal | na | na | na | 14, 15, 16 mm | 5/8 inch | 14, 15, 16 mm | na | Female O-Ring Face Seal Swivel | 0.31160071942446044 lb | SAE J1453 | |
| 10S4OMLOS | Backordered | Backordered | $208.23/each | EA | Steel | 4000 psi | Tee | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | Male BSPP Retaining Ring | na | na | 1/2-14 inch | 14, 15, 16 mm | 14, 15, 16 mm | na | na | Male O-Ring Face Seal | SAE J1453 | ||
| 10S6MLOS | Backordered | Backordered | $61.20/each | EA | Steel | 6000 psi | Tee | 90 Durometer Nitrile | O-ring Face Seal | Male O-Ring Face Seal | Female O-Ring Face Seal Swivel | na | na | na | 14, 15, 16 mm | 14, 15, 16 mm | 14, 15, 16 mm | na | Male O-Ring Face Seal | SAE J1453 | ||
| 10TT4LS | Backordered | Backordered | $42.12/each | EA | Steel | 6000 psi | Straight | na | O-ring Face Seal | Female O-Ring Face Seal Swivel | na | na | 1/4-19 | na | na mm | na inch | na | na | Female BSPP | SAE J1453 |
