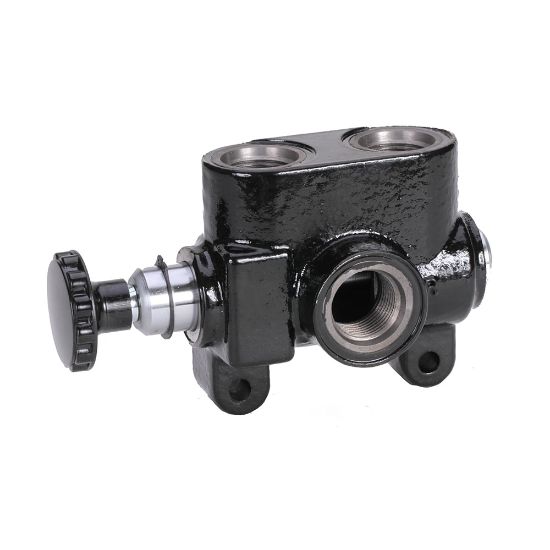

S-8 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	4 in stock

SKU S-8

$192.80/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Parker’s S and SM accessory valves are two-position, three-way selector valves. They are designed for directing flow from one single pump to one, or the other of two separate hydraulic lines. An example of this is the operation of two single-acting cylinders, independent of each other.

Parker’s H and HM accessory valves are two-position, three-way selector valves. They are designed to be used with a three-position, four-way valve to provide a float or free-wheeling condition.

Features:

Chrome plated spool
Pressure balanced spool
High-tensile cast iron body

Applications:

Suitable for various mobile applications

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting	In-Line
Port Size	SAE-8	Style	Circuit Selector
Weight	2.3 lb	Maximum Flow Rate	20
For Fluid Type	Hydraulic Oil	Minimum Operating Temperature	-40 °F
Adjustment Mechanism	Knob	Maximum Operating Temperature	+200 °F
Body Material	High Strength Cast Iron	Connection Size	#8
Actuation Type	Manual	Seal Material	Nitrile
Function	Selector Valve	Maximum Operating Pressure	3000 psi
Connection Type	SAE	Style	Circuit Selector
Port Size	SAE-8	Parker Group	Hydraulic
Mounting Type	In-Line	Parker Division	Hydraulic Valve
