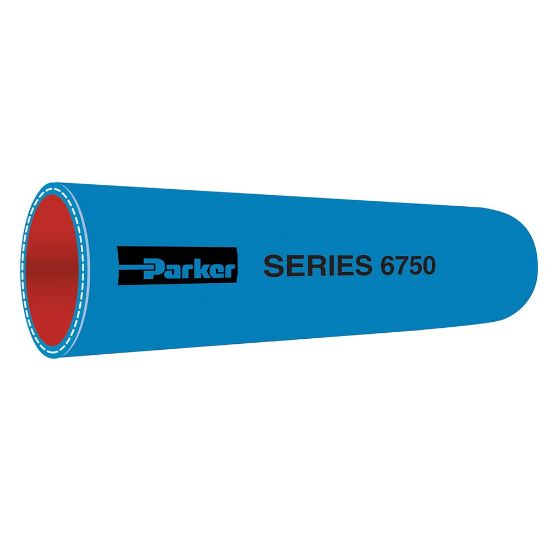

6750-1875003 - Silicone Standard Wall High Temperature Coolant Hose, Series 6750

Silicone Standard Wall High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6750

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 6750-1875003

$132.26/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1-7/8
Minimum Burst Pressure (psi)	200	Media	Water
Maximum Operating Pressure	5 bar	Package Type	Carton
Cover Color	Blue	Minimum Operating Temperature	-65 °F
Minimum Bend Radius	n/a	Specifications Met	SAE J20R1, Class A
Cover Material	Silicone	Cover Structure	Glossy
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Maximum Operating Temperature	176 °C
Weight	1.80 lb	Quantity per Box	1 x 3-ft Lengths
Inside Diameter	47.6 mm	Outside Diameter	56.4 mm
Minimum Burst Pressure	13.8 bar	Hose Inner Tube Material	Brick Red

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
