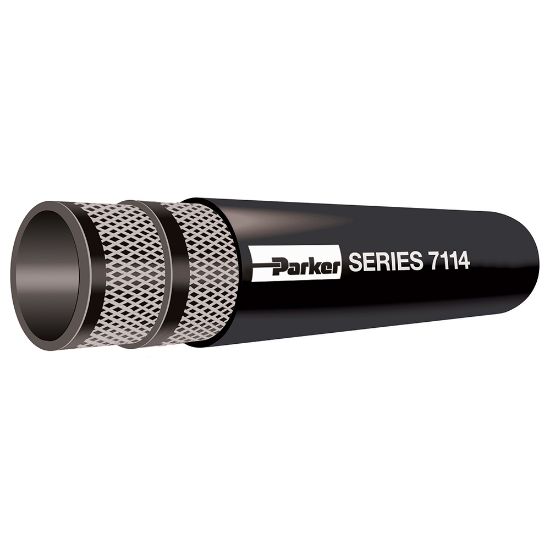

7114-75154A - SOFT-FLEX™ 2000 Softwall Gasoline Dispenser Hose, Series 7114

Soft-Flex 2000 Softwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7114

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	732 in stock

SKU 7114-75154A

$7.47/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	50
Hose I.D. (inch)	3/4	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	50 psi	Minimum Bend Radius	6 inch
Cover Color	Black	Cover Structure	Smooth
Inside Diameter	19.1 mm	Package Type	Reel
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Cover Material	Chloroprene Rubber (CR)
Outside Diameter	1.100 inch	Maximum Operating Temperature	82 °C
Weight	0.15 kg	Length per Package	350 ft
Specifications Met	UL 330/ULC (factory assemblies)	Hose Inner Tube Material	Nitrile Butadiene Rubber (NBR)
Hose Reinforcement Material	4 Plies of Textile with Static Wire

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
