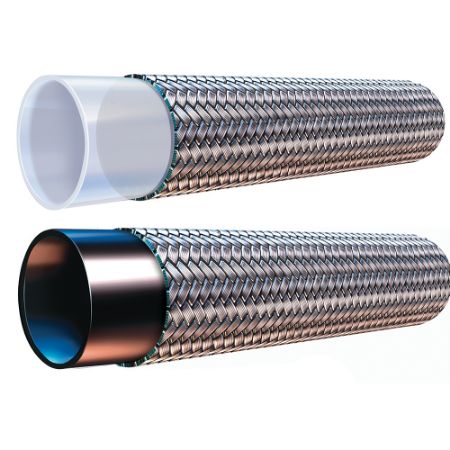

Stainless Steel Braided PTFE Hose - STW/STB
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's STW/STB “True-Bore” Hose differs from other smoothbore PTFE hoses because these hoses have a larger inside diameter to speed up the flow of the media through the tube. For example, an S30-6 PTFE hose has a nominal inside diameter of 5/16 whereas STW-6 “True Bore” hose has a nominal inside diameter of 3/8. The increased I.D. speeds up the flow of the media traveling through the tube and, in some cases, allows the hose to carry up to 15% more flow.
STW/STB “True-Bore” Smooth Bore Stainless Steel Braided PTFE Hose maintains excellent chemical compatibility, resists moisture and is capable of withstanding high temperatures up to 450°F/260°C. It exhibits high performance in applications that involve fluid handling, chemical transfer, food and beverage, paint, pharmaceutical and cosmetics.
Markets:
• Fluid Handling
• Industrial
• Pharmaceutical
• Food & Beverage
Features/Benefits:
• Increased I.D. speeds up the flow of the media traveling through the tube and, in some cases, allows the hose to carry up to 15% more flow
• Handles temperatures up to 450°F/260°C
• Excellent chemical compatibility
• Resists moisture
• Low friction minimizes pressure drops and deposits
Applications:
• Transfer of fluids and harsh chemicals, sanitizers or pesticides
• Chemical transfer
• Paint
• Pharma dispensers
• Cosmetics
Compliance:
• FDA 21 CFR 177.1550 (core tube)
• USP Class VI (core tube)
Technical Specifications:
• “Z” indicates double braid
• Working and burst pressures rated at 73°F (23°C)
• Uses PAGE Fittings and crimp collar ST300 only
• Cannot be used with 90 or 91N Series fittings
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...STW/STB “True-Bore” Smooth Bore Stainless Steel Braided PTFE Hose maintains excellent chemical compatibility, resists moisture and is capable of withstanding high temperatures up to 450°F/260°C. It exhibits high performance in applications that involve fluid handling, chemical transfer, food and beverage, paint, pharmaceutical and cosmetics.
Markets:
• Fluid Handling
• Industrial
• Pharmaceutical
• Food & Beverage
Features/Benefits:
• Increased I.D. speeds up the flow of the media traveling through the tube and, in some cases, allows the hose to carry up to 15% more flow
• Handles temperatures up to 450°F/260°C
• Excellent chemical compatibility
• Resists moisture
• Low friction minimizes pressure drops and deposits
Applications:
• Transfer of fluids and harsh chemicals, sanitizers or pesticides
• Chemical transfer
• Paint
• Pharma dispensers
• Cosmetics
Compliance:
• FDA 21 CFR 177.1550 (core tube)
• USP Class VI (core tube)
Technical Specifications:
• “Z” indicates double braid
• Working and burst pressures rated at 73°F (23°C)
• Uses PAGE Fittings and crimp collar ST300 only
• Cannot be used with 90 or 91N Series fittings
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Style | Hose O.D. (inch) | Media | Maximum Operating Pressure | Outside Diameter | Product Style | Size | Weight | Cover Material | Inside Diameter | Compatible Fitting | Specifications Met | Minimum Bend Radius | Vacuum Pressure Rating | Hose Inner Tube Material | Hose Reinforcement Material | Maximum Operating Temperature | Minimum Operating Temperature | Design Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04-STB | Backordered | Backordered | $10.79/foot | FT | 1/4 | Static Dissipative | 0.37 | Air | 3000 psi | 0.370 inch | Smoothbore | -4 | 0.13 kg/m | n/a | 6 mm | PAGE Series | USP Class VI (compliant core tube) | 3 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of Stainless Steel | 232 °C | -73 °C | 4:1 | |
| 04-STW | Backordered | 26 in stock | $9.94/foot | FT | 1/4 | Natural | 0.37 | Food & Beverage (Cooking Oil) | 207 bar | 9 mm | Truebore | -4 | 0.13 kg/m | n/a | 1/4 inch | PAGE Series | FDA (Core Tube) | 76 mm | 28 Inch-Hg | Natural | Braid of Stainless Steel | 450 °F | -100 °F | 4:1 | |
| 06-STB | Backordered | Backordered | $15.09/foot | FT | 3/8 | Static Dissipative | 0.51 | Industrial Fluids | 13.8 MPa | 13 mm | Non-Conductive | -6 | 0.16 kg/m | n/a | 10 mm | PAGE Series | USP Class VI (compliant core tube) | 127 mm | 711 mm-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of Stainless Steel | 450 °F | -100 °F | 4:1 | |
| 06-STW | Backordered | Backordered | $14.17/foot | FT | 3/8 | Natural | 0.51 | Industrial Fluids | 13.8 MPa | 0.510 inch | Smoothbore | -6 | 0.11 lb/ft | n/a | 3/8 inch | PAGE Series | FDA (Core Tube) | 127 mm | 711 mm-Hg | Polytetrafluoroethylene (PTFE) | Braid of Stainless Steel | 450 °F | -73 °C | 4:1 | |
| 08-STB | Backordered | Backordered | $16.84/foot | FT | 1/2 | Static Dissipative | 0.63 | Water | 12.1 MPa | 0.630 inch | Non-Conductive | -8 | 0.16 lb/ft | n/a | 13 mm | PAGE Series | USP Class VI (compliant core tube) | 6-1/2 inch | 711 mm-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of Stainless Steel | 450 °F | -100 °F | 4:1 | |
| 08-STW | Backordered | Backordered | $16.86/foot | FT | 1/2 | Natural | 0.63 | Chemicals (Adhesive) | 12.1 MPa | 0.630 inch | Smoothbore | -8 | 0.16 lb/ft | n/a | 13 mm | PAGE Series | USP Class VI (compliant core tube) | 165 mm | 711 mm-Hg | Polytetrafluoroethylene (PTFE) | Braid of Stainless Steel | 450 °F | -100 °F | 4:1 | |
| 12-STB | Backordered | Backordered | $22.33/each | EA | 3/4 | Static Dissipative | 0.88 | Water | 6.9 MPa | 0.880 inch | Smoothbore | -12 | 0.20 lb/ft | n/a | 19 mm | PAGE Series | USP Class VI (compliant core tube) | 8-1/2 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of Stainless Steel | 450 °F | -100 °F | 4:1 | |
| 12-STW | Backordered | 10 in stock | $21.11/foot | FT | 3/4 | Natural | 0.88 | Air | 6.9 MPa | 0.880 inch | Smoothbore | -12 | 0.20 lb/ft | n/a | 19 mm | PAGE Series | FDA (Core Tube) | 8-1/2 inch | 711 mm-Hg | Polytetrafluoroethylene (PTFE) | Braid of Stainless Steel | 450 °F | -100 °F | 4:1 | |
| 16-STB | Backordered | Backordered | $33.19/foot | FT | 1 | Static Dissipative | 1.13 | Air | 1000 | 1.130 | Non-Conductive | -16 | 0.33 | n/a | 1 | PAGE Series | USP Class VI (compliant core tube) | 12 | 20 | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of Stainless Steel | 450 | -100 | 4:1 | |
| 16-STW | Backordered | 152 in stock | $31.67/foot | FT | 1 | Natural | 1.13 | Air | 1000 psi | 1.130 inch | Smoothbore | -16 | 0.33 lb/ft | n/a | 1 inch | PAGE Series | FDA (Core Tube) | 305 mm | 20 Inch-Hg | Polytetrafluoroethylene (PTFE) | Braid of Stainless Steel | 232 °C | -73 °C | 4:1 | |
| 20Z-STW | Backordered | 51 in stock | $57.83/foot | FT | 1-1/4 | Natural | 1.52 | Food & Beverage (Cooking Oil) | 69 bar | 1.520 inch | Truebore | -20 | 0.68 lb/ft | n/a | 32 mm | PAGE Series | FDA (Core Tube) | 14 inch | 457 mm-Hg | Polytetrafluoroethylene (PTFE) | Stainless Steel | 232 °C | -73 °C | 4:1 | |
| 24Z-STB | Backordered | Backordered | $124.70/foot | FT | 1-1/2 | Static Dissipative | 1.73 | Chemicals (Adhesive) | 62 bar | 44 mm | Non-Conductive | -24 | 1.18 kg/m | n/a | 1-1/2 inch | PAGE Series | USP Class VI (compliant core tube) | 15 inch | 15 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Stainless Steel | 232 °C | -100 °F | 4:1 | |
| 24Z-STW | Backordered | Backordered | $112.25/foot | FT | 1-1/2 | Natural | 1.73 | Food & Beverage (Cooking Oil) | 62 bar | 44 mm | Truebore | -24 | 1.18 kg/m | n/a | 1-1/2 inch | PAGE Series | USP Class VI (compliant core tube) | 381 mm | 15 Inch-Hg | Polytetrafluoroethylene (PTFE) | Double Braid | 232 °C | -100 °F | 4:1 |
