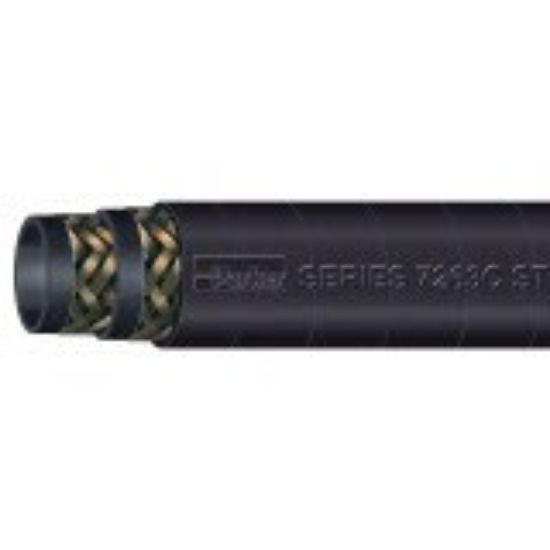

7263C-752 - STEAM-LANCE® 250 COMPACT STEAM HOSE

Steam-Lance® 250 Compact Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1125 in stock

SKU 7263C-752

$8.95/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	3/4	Minimum Operating Temperature	-40 °F
Media	Steam	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Size	-12	Inside Diameter	19.1 mm
Minimum Bend Radius	9 inch	Weight	0.47 lb/ft
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Nominal Hose Inside Diameter	20 mm
Cover Structure	Perforated	Outside Diameter	30.5 mm
Specifications Met	ISO 6134, Type 2	Maximum Operating Pressure	17 bar (Superheated Steam)
Hose Reinforcement Material	Multiple Braids of Wire	Maximum Operating Temperature	208 °C (Saturated Steam)
