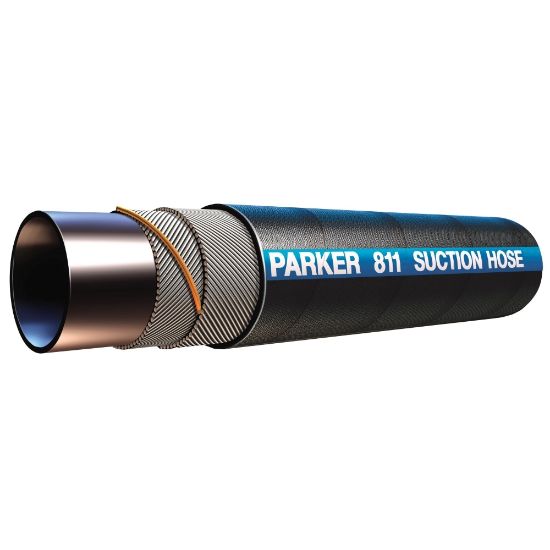

811-12 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Name: 811-12 - Suction and Return Line Hose 62-300 PSI – 811 Hose
SKU: 811-12
Price: 13.54 USD
Availability: InStock

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:

228 in stock

Wichita, KS	151
Springfield, MO	64
Joplin, MO	12

Partner Available:

6442 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 811-12

$13.54/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	212 °F
Inside Diameter	19 mm	Minimum Bend Radius	64 mm
Cover Material	Synthetic Rubber	Hose Cover Type	Standard Cover
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	19 mm	Media	Petroleum Hydraulic Fluids
Weight	0.42 lb/ft	Outside Diameter	1.180 inch
Maximum Operating Pressure	300 psi (w/ 81/88DB)	Specifications Met	SAE J1943
Vacuum Pressure Rating	25 Inch-Hg	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
