Suction and Return Line Hose 62-300 PSI – 811 Hose

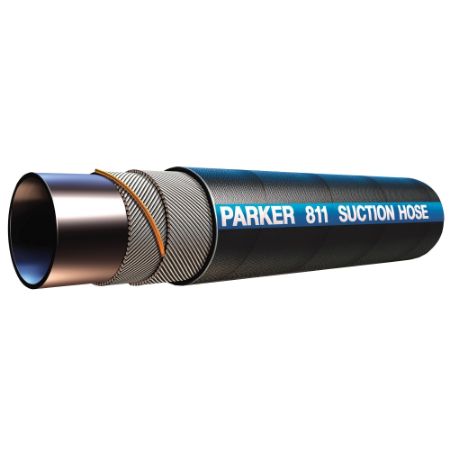

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 811 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• 62-300 PSI working pressure in different sizes
• Half SAE bend radius for ease of installation and low force to flex
• SAE J517 100R4 / SAE J1942 Performance Specifications
• Oil and weather-resistant synthetic rubber cover
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 81 series fittings (for -12 to -32)
• 88 series fittings (for -12 to -40)
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (size) | Minimum Operating Temperature | Maximum Operating Temperature | Inside Diameter | Minimum Bend Radius | Cover Material | Hose Cover Type | Compatible Fitting | Hose Inner Tube Material | Nominal Hose Inside Diameter | Media | Weight | Outside Diameter | Maximum Operating Pressure | Specifications Met | Vacuum Pressure Rating | Hose Reinforcement Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 811-12 | 228 in stock | 6442 in stock | $13.54/foot | FT | -12 | -40 °F | 212 °F | 19 mm | 64 mm | Synthetic Rubber | Standard Cover | 43 Series | Synthetic Rubber | 19 mm | Petroleum Hydraulic Fluids | 0.42 lb/ft | 1.180 inch | 300 psi (w/ 81/88DB) | SAE J1943 | 25 Inch-Hg | Multiple Layers of Spiral Fiber with Wire Helix | |
| 811-16 | 550 in stock | 4470 in stock | $16.31/foot | FT | -16 | -40 °C | 100 °C | 1 inch | 3 inch | Synthetic Rubber | Standard Cover | 88 Series | Synthetic Rubber | 25 mm | Petroleum Hydraulic Fluids | 0.96 kg/m | 38 mm | 17 bar (w/ 81/88DB) | SAE 100R4 | 84 kPa | Multiple Layers of Spiral Fiber with Wire Helix | |
| 811-20 | 422 in stock | 4735 in stock | $23.07/foot | FT | -20 | -40 °C | 100 °C | 31.8 mm | 102 mm | Synthetic Rubber | Standard Cover | 43 Series | Synthetic Rubber | 31 mm | Lubricants | 0.82 lb/ft | 45 mm | 50 psi (w/ 88HC) | SAE 100R4 | 25 Inch-Hg | Multiple Layers of Spiral Fiber with Wire Helix | |
| 811-24 | 551 in stock | 3317 in stock | $30.82/foot | FT | -24 | -40 °F | 100 °C | 1-1/2 inch | 5 inch | Synthetic Rubber | Standard Cover | 88 Series | Synthetic Rubber | 38 mm | Lubricants | 1.04 lb/ft | 2.050 inch | 3 bar (w/ 88HC) | USCG HF | 84 kPa | Multiple Layers of Spiral Fiber with Wire Helix | |
| 811-32 | 597 in stock | 3279 in stock | $38.63/foot | FT | -32 | -40 °F | 212 °F | 2 inch | 152 mm | Synthetic Rubber | Standard Cover | 43 Series | Synthetic Rubber | 50 mm | Petroleum Hydraulic Fluids | 1.87 kg/m | 63.6 mm | 100 psi (w/ 81/88DB) | USCG HF | 84 kPa | Multiple Layers of Spiral Fiber with Wire Helix | |
| 811-40 | 187 in stock | 915 in stock | $53.45/foot | FT | -40 | -40 °C | 212 °F | 2-1/2 inch | 178 mm | Synthetic Rubber | Standard Cover | 81 Series | Synthetic Rubber | 63 mm | Lubricants | 2.45 kg/m | 3 inch | 4 bar (w/ 88HC) | SAE 100R4 | 25 Inch-Hg | Multiple Layers of Spiral Fiber with Wire Helix |
