Suction Elements / Inbuilt Filters - SE Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

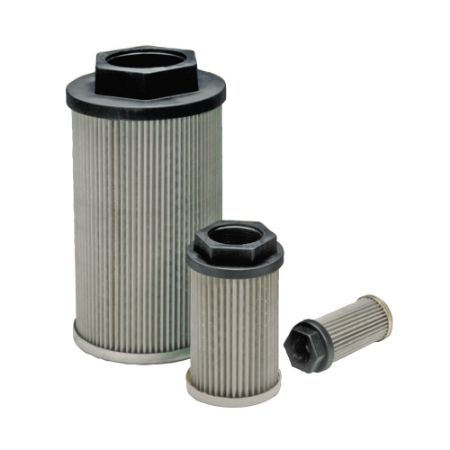

Parker SE Series suction elements / inbuilt reservoir filters are designed to prevent large objects (i.e., stones, deposits, sticks, etc.) from entering hydraulic system pumps, which can cause increased wear and tear to critical components, shorter maintenance intervals, and added downtime. The elements are designed for installation inside the reservoir / tank and are equipped with 125 micron rating abs steel wire mesh media, which provides maximum filtration efficiency and full fluid flow, thus ensuring reliable system performance.

Multiple filter flow capacities (15 - 500 L/min) and mounting threads (G½, G¾, G1, G1½, G2, G2½, G3) are available to meet the unique requirements of customers’ systems. Suction elements with an integrated 0.17 bar bypass valve are also available as an option.

Typical applications for SE Series tank inbuilt filters include saw mills, agricultural machines, articulated dump trucks, forestry equipment, wheeled loaders, lubricated systems, excavators, industrial power units, and mobile cranes.

Benefits:
• Prevents ingress of large objects into hydraulic systems
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life

Features:
• Capable of flows up to 500 l/min (132 gpm).
• Operating temperature range: -30 to +90°C (-22 to +194°F)
• Optional 0.17 bar bypass valve available
• Connections: threads: G½, G¾, G1, G1½, G2, G2½, G3"

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Flow Rate	Bypass Valve Pressure Rating	Port Type	Micron Rating	Outside Diameter	Industry	Mounting Type	Length	Options
S.750002	Backordered	Backordered	$153.80/each	EA	75 l/min	No Bypass	G1	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	110 mm	Suitable for water
S.750029	Backordered	Backordered	$209.26/each	EA	260 l/min	No Bypass	G2	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	380 mm	None
S.750032	Backordered	Backordered	$146.55/each	EA	130 l/min	No Bypass	G2	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	190 mm	None
SE.75351340G	Backordered	Backordered	$141.06/each	EA	130 l/min	No Bypass	G1½	75.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	199 mm	None
SE.75361310	2 Limited Stock	Backordered	$66.01/each	EA	130 l/min	No Bypass	G2	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	199 mm	None
SE75111111	Backordered	Backordered	$130.25/each	EA	15 l/min	0.17 bar	G½	125.0 MICRON	46 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	105.5 mm
SE75221110	Backordered	Backordered	$47.42/each	EA	25 l/min	No Bypass	G¾	125.0 MICRON	64 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	109.5 mm
SE75231211	Backordered	1 Limited Stock	$105.09/each	EA	50 l/min	0.17 bar	G1	125.0 MICRON	64 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	139.5 mm
SE75351210	Backordered	Backordered	$65.54/each	EA	95 l/min	No Bypass	G1½	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	140 mm
SE75351211	Backordered	Backordered	$111.59/each	EA	95 l/min	0.17 bar	G1½	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	140 mm
SE75351311	Backordered	Backordered	POR	EA	130 l/min	0.17 bar	G1½	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	200 mm
SE75361410	Backordered	1 Limited Stock	$89.90/each	EA	180 l/min	No Bypass	G2	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	260 mm
SE75361411	Backordered	Backordered	POR	EA	180 l/min	0.17 bar	G2	125.0 MICRON	86 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	260 mm
SE75461210	Backordered	Backordered	$123.84/each	EA	225 l/min	No Bypass	G2	125.0 MICRON	150 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	150 mm
SE75461211	Backordered	Backordered	$173.07/each	EA	225 l/min	0.17 bar	G2	125.0 MICRON	150 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	150 mm
SE75471311	Backordered	Backordered	POR	EA	350 l/min	0.17 bar	G2½	125.0 MICRON	150 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	212 mm
SE75481410	Backordered	Backordered	$142.75/each	EA	500 l/min	No Bypass	G3	125.0 MICRON	150 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	272 mm
SE75481411	Backordered	Backordered	$195.45/each	EA	500 l/min	0.17 bar	G3	125.0 MICRON	150 mm	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry	Tank Mounted	272 mm
