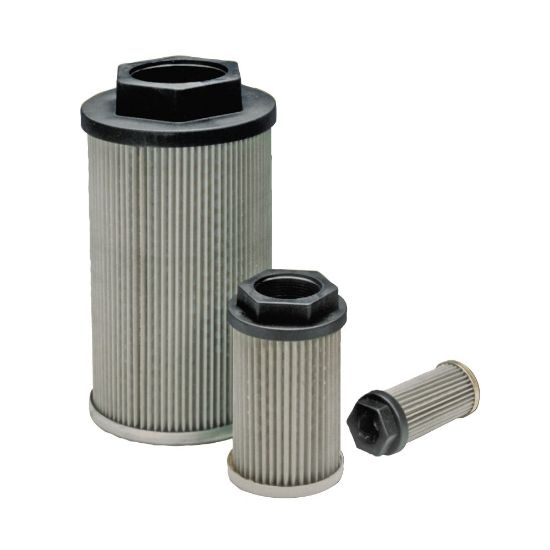

Suction Elements / Inbuilt Filters - SE Series - SE75221110

Name: Suction Elements / Inbuilt Filters - SE Series - SE75221110
SKU: SE75221110

The Parker SE Series comprises a range of suction elements / inbuilt tank filters. The elements are equipped with 125 micron rating abs steel wire mesh media and are capable of flows ranging from of 15 - 500 l/min (4 -132 gpm).

Availability:

Backordered

SKU SE75221110

$47.42

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	25 l/min
Bypass Valve Pressure Rating	No Bypass	Port Type	G¾
Operating Temperature	-30 to 90 °C	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Product Type	Hydraulic Filter	Housing Material	Nylon/Plated mild steel
Micron Rating	125.0 MICRON	Brand	PARKER
Division	Hydraulic & Industrial Process Filtration Division EMEA	Technology	Filtration
Length	109.5 mm	Outside Diameter	64 mm
Mounting Type	Tank Mounted	Industry	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry
Application	Deck and mobile cranes\|Firefighting equipment\|Forwarders\|Hydraulic presses\|Marine steering units\|Power packs\|Waste management, dump and fork lift trucks\|Excavators\|Harvesters\|Waste balers\|Reach stackers\|Wheeled loaders\|Drilling equipment\|Industrial power
