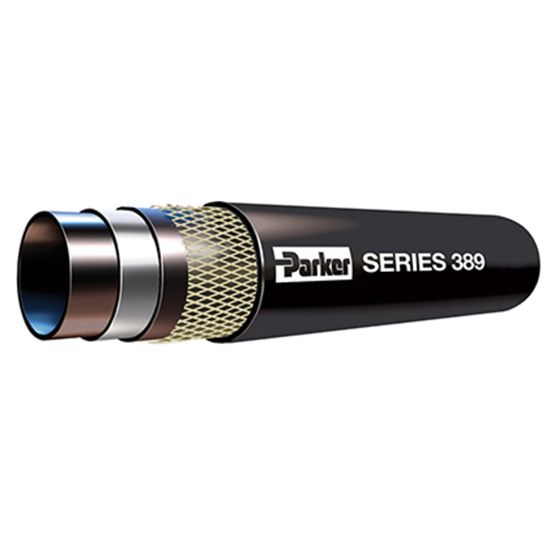

38905 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389

Name: 38905 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389
SKU: 38905
Price: 2.86 USD
Availability: InStock

Super-Flex FL-7 Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 389.

Availability:

32 in stock

Wichita, KS	25
Olivette, MO	6

Partner Available:

1152 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 38905

$2.86/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Maximum Working Pressure (psi)	100	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C	Weight	0.11 lb/ft
Maximum Operating Pressure	3.4 bar	Cover Color	Black
Minimum Bend Radius	50.8 mm	Cover Structure	Smooth
Package Type	Reel	Hose Inner Tube Material	Black
Vacuum Pressure Rating	24 Inch-Hg	Inside Diameter	5/16 inch
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Cover Material	Chloroprene Rubber (CR)
Outside Diameter	14.3 mm	Compatible Fitting	HY Series
Specifications Met	SAE J30R14, Type 2	Hose Reinforcement Material	2 Plies of Aramid
Length per Package	250 ft
