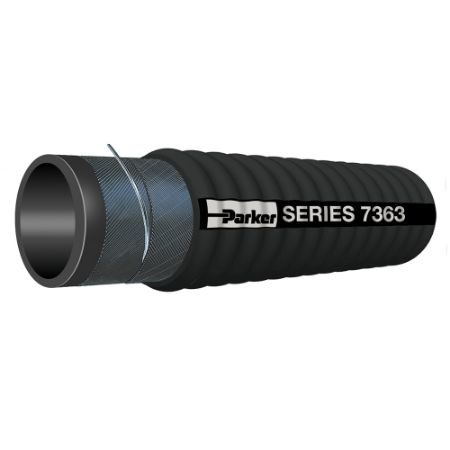

SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7363 Concrete Placement Hose provides excellent heavy duty service as a delivery/placement connection across multiple medium pressure transfer and applications. The thick rubber tube provides additional resistance to abrasive materials going through the hose, and the corrugated cover provides kink resistance for unimpeded flow, additional flexibility for easy handling and resistance to abrasion and weathering for maximum performance.
Markets:
• Construction
• General Industrial
• Local & Municipal Governments
Features/Benefits:
• Tube: Black 3/16” thick natural rubber/SBR for abrasion resistance to 160°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black corrugated rubber/SBR for resistance to abrasion, cuts, gouging, scuffs and weathering.
• Lengths: Available in optional 200-foot lengths for maximum efficiency of inventory.
Applications:
- media
• Abrasive materials
• Debris
• Water
- usage
• Bulk loading/unloading
• Construction sites
• Rail yards
Safety/Technical:
• Design Factor: 3:1
• Click here to access CrimpSource® for current crimp specifications.
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Working Pressure (psi) | Hose I.D. (inch) | Minimum Operating Temperature | Specifications Met | Package Type | Length per Package | Maximum Operating Pressure | Cover Color | Hose Inner Tube Material | Maximum Operating Temperature | Inside Diameter | Minimum Bend Radius | Design Factor | Cover Structure | Vacuum Pressure Rating | Hose Reinforcement Material | Media | Weight | Cover Material | Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7363-3000 | Backordered | 61 in stock | $45.54/foot | FT | 100 | 3 | -40 °F | N/A | Coil | 100 ft | 100 psi | Black | Black | 160 °F | 3 inch | 9 inch | 3:1 | Wrapped | Full | 3 Plies of Textile with Wire Helix | Dry Abrasive Powders (Debris) | 2.35 lb/ft | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 3.800 inch | |
| 7363-4000 | Backordered | 113 in stock | $53.70/foot | FT | 100 | 4 | -40 °F | N/A | Coil | 100 ft | 6.9 bar | Black | Black | 160 °F | 4 inch | 304.8 mm | 3:1 | Wrapped | Full | 3 Plies of Textile with Wire Helix | Water | 3.26 lb/ft | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 123.1 mm | |
| 7363-5000 | Backordered | 19 in stock | $77.38/foot | FT | 100 | 5 | -40 °C | N/A | Coil | 100 ft | 100 psi | Black | Black | 71 °C | 5 inch | 381 mm | 3:1 | Wrapped | Full | 3 Plies of Textile with Wire Helix | Wet Abrasive Powders | 4.64 lb/ft | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 5.929 inch | |
| 7363-6000 | Backordered | 45 in stock | $91.62/foot | FT | 100 | 6 | -40 °F | N/A | Coil | 100 ft | 6.9 bar | Black | Black | 160 °F | 152.4 mm | 18 inch | 3:1 | Wrapped | Full | 3 Plies of Textile with Wire Helix | Water | 8.34 kg/m | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 6.937 inch |
