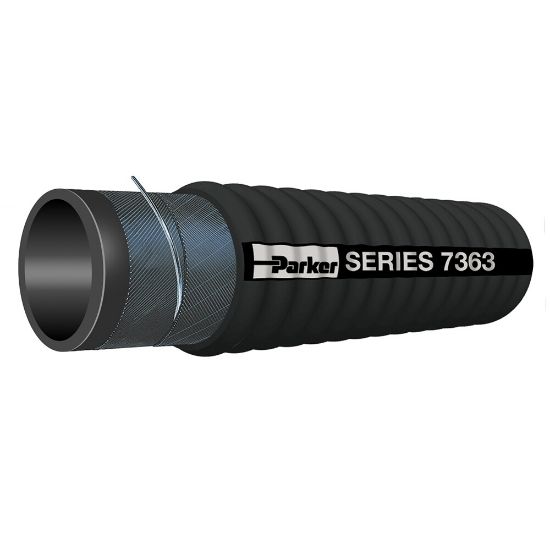

Picture of SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363 - 7363-4000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363 - 7363-4000

Super-Flex Large Diameter Corrugated Vacuum Hose incorporates a 3/16” thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 160°F and 100 psi, Series 7363
Availability:
Backordered
SKU 7363-4000
$53.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMaximum Working Pressure (psi)100
Hose I.D. (inch)4Minimum Operating Temperature-40 °F
DivisionHose Products DivisionMaximum Operating Pressure6.9 bar
Specifications MetN/AMediaWater
Package TypeCoilLength per Package100 ft
ApplicationMaterial HandlingCover ColorBlack
Hose Inner Tube MaterialBlackMaximum Operating Temperature160 °F
Design Factor3:1Inside Diameter4 inch
Minimum Bend Radius304.8 mmCover StructureWrapped
Vacuum Pressure RatingFullHose Reinforcement Material3 Plies of Textile with Wire Helix
Weight3.26 lb/ftCover MaterialNatural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend
Outside Diameter123.1 mm
