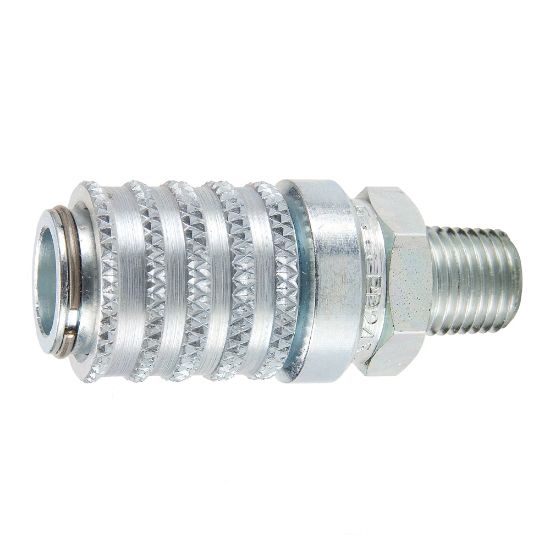

PD243 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD243 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD243
Price: 60.72 USD
Availability: InStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:

12 in stock

COLUMBIA, MO	3
Peoria, IL	3
Olivette, MO	2
WICHITA, KS	2
Springfield, MO	2

Partner Available:

120 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD243

$60.72/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Tube Size (inch)	na	Connection Type	Male NPTF
Coupling Half	Female Coupler	Seal Material	Nitrile
Body Size	1/8 inch	Maximum Operating Pressure	6000 psi
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Body Material	Steel	Hex Size	0.81 inch
Flow Rate	0.8 Gal/min	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Specifications Met	SAE J1502 / ISO 15171-1

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
