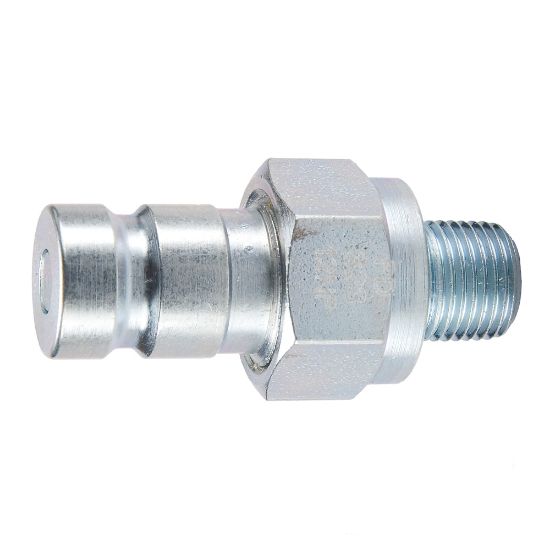

PD341 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD341 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD341
Price: 20.53 USD
Availability: InStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:

68 in stock

Kansas City, KS	30
Olivette, MO	18
Springfield, MO	4
COLUMBIA, MO	4
Wichita, KS	2
WICHITA, KS	2
Kansas City, KS	2
Peoria, IL	2
Decatur, IL	2
TOPEKA, KS	1
Olivette, MO	1

Partner Available:

635 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD341

$20.53/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Thread Size (inch)	7/16 - 20	Connection Type	Male UNF
Tube Size (inch)	na	Flow Rate	0.8 Gal/min
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Size	1/8 inch	Dimensional Weight	0.009997002398081534 lb
Specifications Met	SAE J1502	Seal Material	Nitrile
Plating Type	Zinc with clear trivalent chromate	Valve Type	Non-spill
Hex Size	0.69 inch	Maximum Operating Pressure	6000 psi
Body Material	Steel
