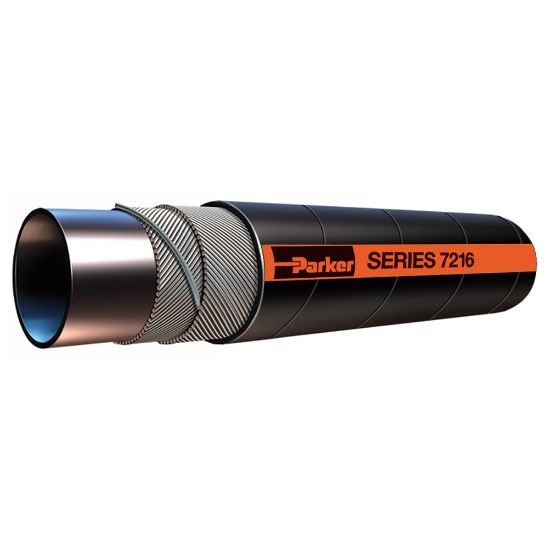

Picture of TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE - 7216-4002

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE - 7216-4002

Translite Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 150 psi.
Availability:
46 in stock
Olivette, MO46
SKU 7216-4002
$41.22
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTColorBlack
Hose I.D. (inch)4Minimum Operating Temperature-40 °F
DivisionHose Products DivisionSpecifications MetN/A
Design Factor4:1Maximum Operating Pressure10.3 bar
Hose Inner Tube MaterialNitrileMaximum Operating Temperature82 °C
Size-64Inside Diameter4 inch
MediaFuels (Biodiesel to B20 in dedicated service)ApplicationPetroleum Transfer
Nominal Hose Inside Diameter100 mmWeight4.43 kg/m
Cover MaterialNitrileOutside Diameter118.3 mm
Minimum Bend Radius16 inchVacuum Pressure Rating737 mm-Hg
Hose Reinforcement MaterialMultiple Plies of Textile with Wire Helix
