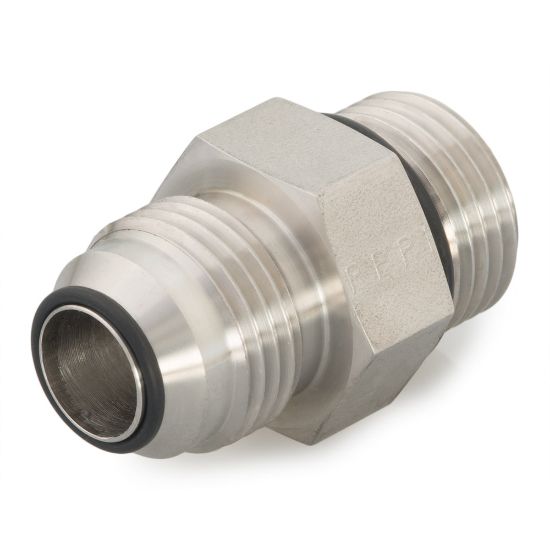

10 F5OXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 10 F5OXO-SS

$63.86/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Connection 1 Style	Male 37° Flare with O-ring Seal on Nose	Connection 2 Style	Male SAE-ORB
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	7/8-14	Body Material	Stainless Steel
Connection Type	Soft Seal Stainless Steel 37° Flare	Specifications Met	SAE J514
Maximum Dynamic Pressure	6000 psi	Connection 3 Size	na
Connection 3 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
