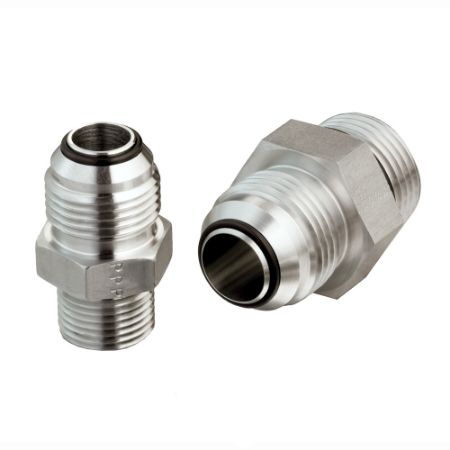

Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's soft seal 37° flare JIC tube fittings and adapters, Triple-Lok 2, offer the versatility of the popular metal to metal seal with the added advantage of an elastomeric seal in the nose of the 37° flare. This design creates superior sealing performance in metal-to-metal seal applications with working pressures up to 20% more than standard stainless steel metal to metal 37° flare JIC tube fittings and adapters.
Markets:
• Oil and Gas
• Unmanned Submarines
• Marine
• Power Generation
• Pulp and Paper
• Semiconductor
Features/Benefits:
• Specifically engineered groove design that prevents nose collapse.
• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
• Interchangeable with standard 37° flared fittings and features a replaceable standard O-ring seal.
• Exceeds all performance requirements of SAE J514.
• Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly mistake-proof.
• Available in stainless steel in sizes ¼“through 2” with working pressures up to 9000 psi.
Applications:
• Hydraulic fluid and gas handling connections
Read More...Markets:
• Oil and Gas
• Unmanned Submarines
• Marine
• Power Generation
• Pulp and Paper
• Semiconductor
Features/Benefits:
• Specifically engineered groove design that prevents nose collapse.
• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
• Interchangeable with standard 37° flared fittings and features a replaceable standard O-ring seal.
• Exceeds all performance requirements of SAE J514.
• Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly mistake-proof.
• Available in stainless steel in sizes ¼“through 2” with working pressures up to 9000 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 1 Style | Connection 2 Style | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Connection 2 Thread Size (inch) | Body Material | Connection Type | Specifications Met | Maximum Dynamic Pressure | Connection 3 Size | Connection 3 Tube Outside Diameter | O-Ring Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

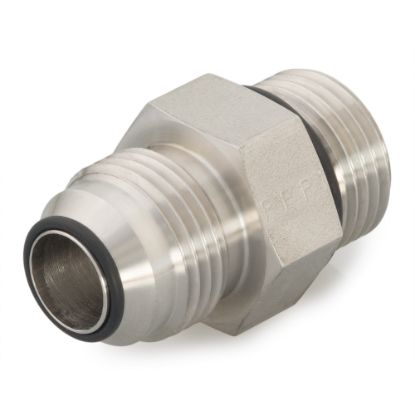

| 10 F5OXO-SS | Backordered | Backordered | $63.86/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male SAE-ORB | 5/8 | na | 7/8-14 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 6000 psi | na | na | 90 Durometer Nitrile | |
| 10 GTXO-SS | Backordered | Backordered | $91.65/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Female NPT/NPTF | 5/8 | na | 1/2-14 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5000 psi | na | na | 90 Durometer Nitrile | |

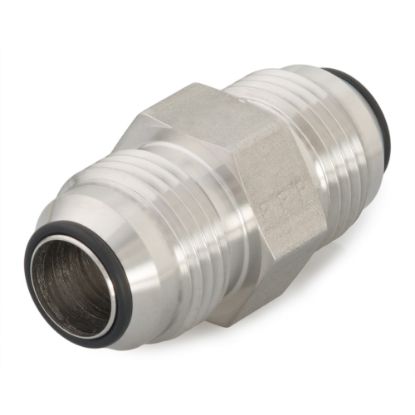

| 10 HTXO-SS | Backordered | Backordered | $69.12/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male 37° Flare with O-ring Seal on Nose | 5/8 | 5/8 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 6000 psi | na | na | 90 Durometer Nitrile | |

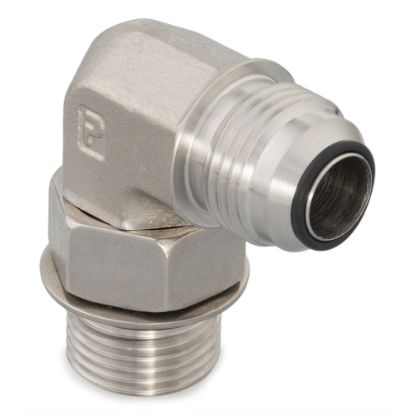

| 12 C5OXO-SS | Backordered | Backordered | $242.46/each | EA | 90° Elbow | Male 37° Flare with O-ring Seal on Nose | Male SAE-ORB | 3/4 | na | 7/8-14 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5400 psi | na | na | 90 Durometer Nitrile | |

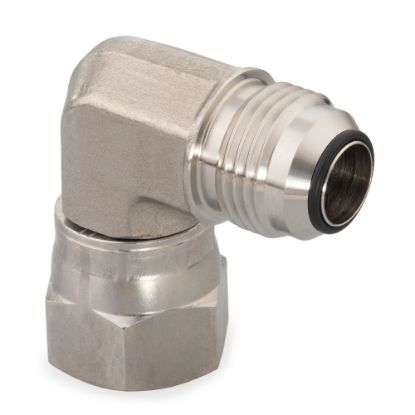

| 12 C6XO-SS | Backordered | Backordered | $149.33/each | EA | 90° Elbow | Male 37° Flare with O-ring Seal on Nose | Female 37° Flare Swivel | 3/4 | 3/4 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5000 psi | na | na | 90 Durometer Nitrile | |

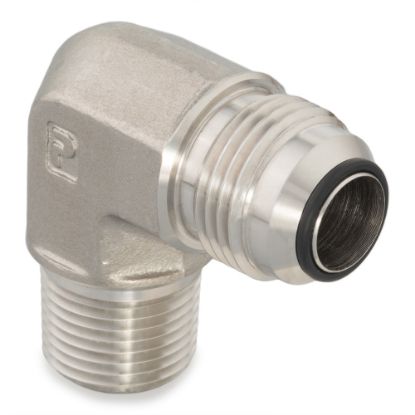

| 12 CTXO-SS | Backordered | Backordered | $124.06/each | EA | 90° Elbow | Male 37° Flare with O-ring Seal on Nose | Male NPT/NPTF | 3/4 | na | 3/4-14 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 4000 psi | na | na | 90 Durometer Nitrile | |
| 12 F5OXO-SS | Backordered | 1 Limited Stock | $80.60/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male SAE-ORB | 3/4 | na | 1 1/16-12 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 6000 psi | na | na | 90 Durometer Nitrile | |

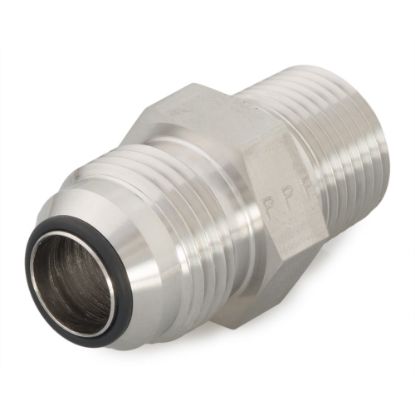

| 12 FTXO-SS | Backordered | Backordered | $72.68/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male NPT/NPTF | 3/4 | na | 3/4-14 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5000 psi | na | na | 90 Durometer Nitrile | |
| 12 HTXO-SS | Backordered | Backordered | $85.26/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male 37° Flare with O-ring Seal on Nose | 3/4 | 3/4 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 6000 psi | na | na | 90 Durometer Nitrile | |
| 16 CTXO-SS | Backordered | Backordered | $194.26/each | EA | 90° Elbow | Male 37° Flare with O-ring Seal on Nose | Male NPT/NPTF | 1 | na | 1-11 1/2 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 3000 psi | na | na | 90 Durometer Nitrile | |
| 16 FTXO-SS | Backordered | Backordered | $87.44/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male NPT/NPTF | 1 | na | 1-11 1/2 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 4500 psi | na | na | 90 Durometer Nitrile | |
| 16 GTXO-SS | Backordered | Backordered | $155.92/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Female NPT/NPTF | 1 | na | 1-11 1/2 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 3600 psi | na | na | 90 Durometer Nitrile | |
| 16 HTXO-SS | Backordered | Backordered | $109.14/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male 37° Flare with O-ring Seal on Nose | 1 | 1 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5400 psi | na | na | 90 Durometer Nitrile | |

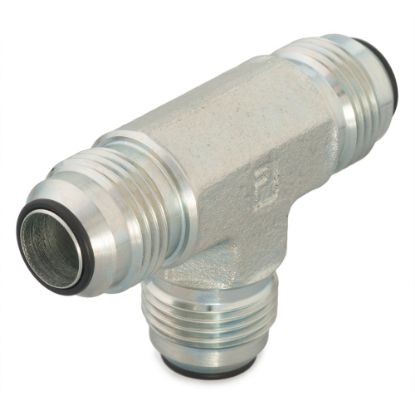

| 16 JTXO-SS | Backordered | Backordered | $284.32/each | EA | Tee | Male 37° Flare with O-ring Seal on Nose | Male 37° Flare with O-ring Seal on Nose | 1 | 1 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5000 psi | Male 37° Flare with O-ring Seal on Nose | 1 inch | 90 Durometer Nitrile | |
| 20 FTXO-SS | Backordered | Backordered | $179.78/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male NPT/NPTF | 1 1/4 | na | 1 1/4-11 1/2 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 3000 psi | na | na | 90 Durometer Nitrile | |
| 20 HTXO-SS | Backordered | Backordered | $250.83/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male 37° Flare with O-ring Seal on Nose | 1 1/4 | 1 1/4 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5000 psi | na | na | 90 Durometer Nitrile | |
| 24 F5OXO-SS | Backordered | 3 in stock | $306.49/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male SAE-ORB | 1 1/2 | na | 1 7/8-12 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 4000 psi | na | na | 90 Durometer Nitrile | |
| 24 FTXO-SS | Backordered | 5 in stock | $227.23/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male NPT/NPTF | 1 1/2 | na | 1 1/2-11 1/2 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 3000 psi | na | na | 90 Durometer Nitrile | |
| 24 HTXO-SS | Backordered | Backordered | $252.08/each | EA | Straight | Male 37° Flare with O-ring Seal on Nose | Male 37° Flare with O-ring Seal on Nose | 1 1/2 | 1 1/2 | na | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 5000 psi | na | na | 90 Durometer Nitrile | |
| 4 C5OXO-SS | Backordered | Backordered | $59.70/each | EA | 90° Elbow | Male 37° Flare with O-ring Seal on Nose | Male SAE-ORB | 1/4 | na | 7/16-20 | Stainless Steel | Soft Seal Stainless Steel 37° Flare | SAE J514 | 6000 psi | na | na | 90 Durometer Nitrile |
