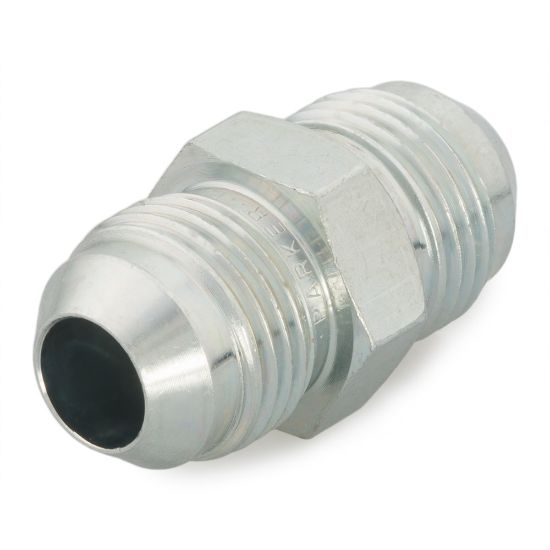

10 HTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	129 in stock

SKU 10 HTX-B

$18.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Brass
Connection 4 Size	na	Shape	Straight
Dimensional Weight	0.044946043165467624 lb	Connection Type	37° Flare
Maximum Dynamic Pressure	3300 psi	O-Ring Material	na
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 3 Size	na
Connection 2 Size	Male 37° Flare	Connection 2 Tube Outside Diameter	5/8 inch

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
