Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 37° Flare JIC tube fittings and adapters, Triple-Lok®, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Engine Transmission
Features/Benefits:
• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
• Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED
• Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Stainless Steel nuts have a coating to prevent galling.
• Available in steel, stainless steel, and brass in sizes 1/8” - 2 ½” with working pressures up to 7500 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Connection 4 Size | Maximum Dynamic Pressure | Connection Type | O-Ring Material | Specifications Met | Shape | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 4 Tube Outside Diameter | Connection 1 Size | Connection 2 Size | Connection 3 Size | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-6 C5OX-S FKM | Backordered | Backordered | $29.05/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Fluorocarbon | SAE J514 | 90° Elbow | na | na | 5/8 inch | na | na | na | Male 37° Flare | Male SAE-ORB | na | ||
| 10-6 CTX-B | Backordered | 9 in stock | $35.11/each | EA | Brass | na | 3300 psi | Tube to NPT | na | SAE J514 | 90° Elbow | 3/8-18 inch | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.062320143884892085 lb | |
| 10-6 CTX-S | 23 in stock | 368 in stock | $14.45/each | EA | Steel | na | 5000 psi | Tube to NPT | na | SAE J514 | 90° Elbow | 3/8-18 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.05140231564748201 lb | |
| 10-6 CTX-SS | Backordered | 1 Limited Stock | $85.13/each | EA | Stainless Steel | na | 5000 psi | Tube to NPT | na | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | ||
| 10-6 DTX-S | Backordered | Backordered | $25.35/each | EA | Steel | na | 3000 psi | 37° Flare | na | SAE J514 | 90° Elbow | na | na | 5/8 inch | na | na | na | Male 37° Flare | Female NPT/NPTF | na | ||
| 10-6 F5OX-S | 9 in stock | 316 in stock | $12.22/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Nitrile | SAE J514 | Straight | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male SAE-ORB | na | 0.062320143884892085 lb | |
| 10-6 F5OX-S FKM | Backordered | Backordered | $14.80/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Fluorocarbon | SAE J514 | Straight | 9/16-18 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Male SAE-ORB | na | ||
| 10-6 F5OX-SS | Backordered | Backordered | $82.10/each | EA | Stainless Steel | na | 6000 psi | 37° Flare | 90 Durometer Nitrile | SAE J514 | Straight | 9/16-18 inch | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male SAE-ORB | na | ||
| 10-6 F6X-S | Backordered | 32 in stock | $47.96/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | na | na | na | Female 37° Flare Swivel | Male NPT/NPTF | na | 0.062320143884892085 lb | |
| 10-6 FTX-B | 3 in stock | 3 in stock | $18.89/each | EA | Brass | na | 3300 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.062320143884892085 lb | |
| 10-6 FTX-S | 39 in stock | 637 in stock | $5.50/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.04112185251798561 lb | |
| 10-6 FTX-SS | Backordered | 1 Limited Stock | $54.85/each | EA | Stainless Steel | na | 5000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.062320143884892085 lb | |
| 10-6 G6X-S | Backordered | 157 in stock | $42.39/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 5/8 inch | na | na | na | Female 37° Flare Swivel | Female NPT/NPTF | na | ||
| 10-6 GTX-S | Backordered | 1 Limited Stock | $12.54/each | EA | Steel | na | 5000 psi | Tube to NPT | na | SAE J514 | Straight | 3/8-18 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Female NPT/NPTF | na | ||
| 10-6 HTX-S | Backordered | 3 in stock | $11.63/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | 3/8 inch | na | na | Male 37° Flare | Male 37° Flare | na | 0.0362589928057554 lb | |
| 10-6 TRTX-B | Backordered | Backordered | $62.85/each | EA | Brass | na | 3300 psi | Tube to Tube Reducer | na | SAE J514 | Straight | na | na | 5/8 inch | 10 mm | na | na | Female 37° Flare No Nut | Male 37° Flare | na | ||
| 10-6 TRTXN-B | Backordered | Backordered | $70.80/each | EA | Brass | na | 3300 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | 10 mm | na | na | Female 37° Flare with Large Nut | Male 37° Flare | na | ||

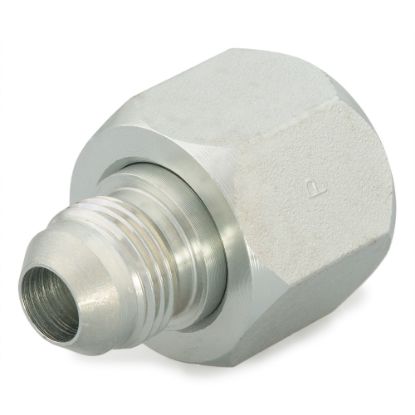

| 10-6 TRTXN-S | 13 in stock | 206 in stock | $10.83/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 5/8 inch | 10 mm | na | na | Female 37° Flare with Large Nut | Male 37° Flare | na | ||
| 10-6 TRTXN-SS | Backordered | 6 in stock | $89.79/each | EA | Stainless Steel | na | 6000 psi | 37° Flare | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | 3/8 inch | na | na | Female 37° Flare with Large Nut | Male 37° Flare | na | 0.07913669064748201 lb | |

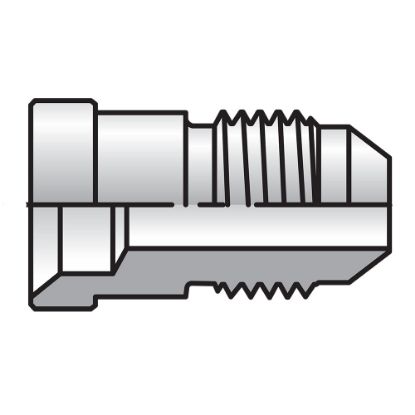

| 10-6 TRTX-S | 11 in stock | 178 in stock | $8.14/each | EA | Steel | na | 5000 psi | Tube to Tube Reducer | na | SAE J514 | Straight | na | na | 14, 15, 16 mm | 10 mm | na | na | Female 37° Flare No Nut | Male 37° Flare | na | 0.015485611510791366 lb |
