Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 37° Flare JIC tube fittings and adapters, Triple-Lok®, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Engine Transmission
Features/Benefits:
• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
• Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED
• Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Stainless Steel nuts have a coating to prevent galling.
• Available in steel, stainless steel, and brass in sizes 1/8” - 2 ½” with working pressures up to 7500 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Connection 4 Size | Maximum Dynamic Pressure | Connection Type | O-Ring Material | Specifications Met | Shape | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 4 Tube Outside Diameter | Connection 1 Size | Connection 2 Size | Connection 3 Size | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

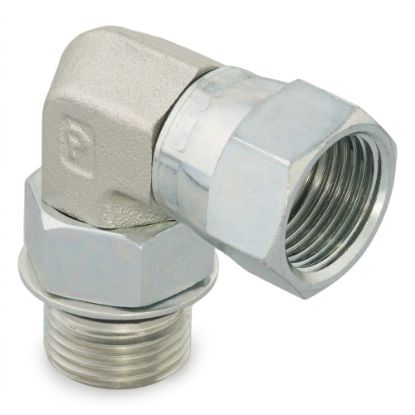

| 10 AOEX6-S | 1 Limited Stock | 8 in stock | $33.19/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Nitrile | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | na | na | na | Female 37° Flare Swivel | Male SAE-ORB | na | ||

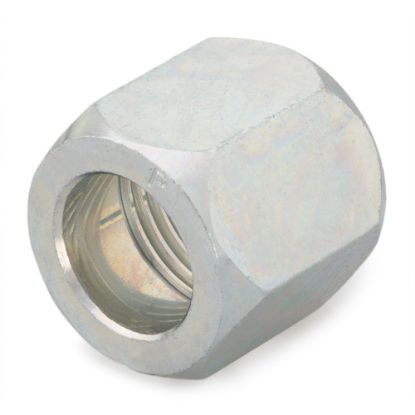

| 10 BTX-B | 35 in stock | 10 in stock | $5.99/each | EA | Brass | na | na | 37° Flare | na | SAE J514 | Nut | na | na | 14, 15, 16 mm | na | na | na | Female 37° Flare | na | na | 0.024928057553956832 lb | |
| 10 BTX-S | 90 in stock | 4515 in stock | $2.49/each | EA | Steel | na | na | 37° Flare | na | SAE J514 | Nut | na | na | 14, 15, 16 mm | na | na | na | Female 37° Flare | na | na | 0.01720623501199041 lb | |
| 10 BTX-SS | Backordered | 111 in stock | $19.47/each | EA | Stainless Steel | na | na | 37° Flare | na | SAE J514 | Nut | na | na | 5/8 inch | na | na | na | Female 37° Flare | na | na | 0.024928057553956832 lb | |

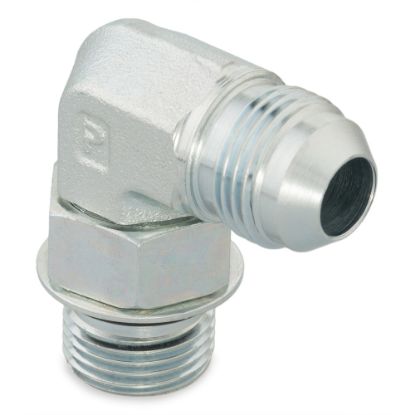

| 10 C5OX-S | 58 in stock | 835 in stock | $18.22/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Nitrile | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male SAE-ORB | na | 0.06853642086330936 lb | |
| 10 C5OX-S FKM | Backordered | 4 in stock | $22.08/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Fluorocarbon | SAE J514 | 90° Elbow | 7/8-14 inch | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male SAE-ORB | na | ||
| 10 C5OX-S ZJ | Backordered | Backordered | POR | EA | Steel, Zinc Nickel | na | 5000 psi | 37° Flare | 90 Durometer Nitrile | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male SAE-ORB | na | ||
| 10 C5OX-SS | Backordered | 90 in stock | $168.64/each | EA | Stainless Steel | na | 5400 psi | Tube to SAE-ORB | 90 Durometer Nitrile | SAE J514 | 90° Elbow | 7/8-14 inch | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male SAE-ORB | na | 0.12464028776978417 lb | |

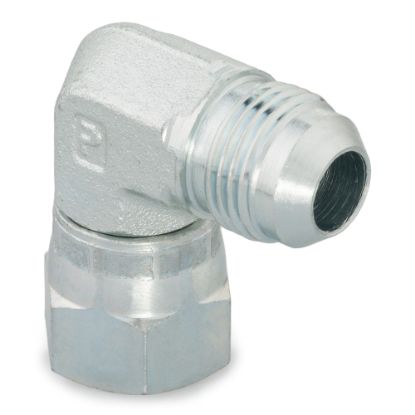

| 10 C6X-S | 48 in stock | 877 in stock | $18.36/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | 14, 15, 16 mm | na | na | Male 37° Flare | Female 37° Flare Swivel | na | 0.07742805755395683 lb | |
| 10 C6X-S ZJ | Backordered | Backordered | POR | EA | Steel, Zinc Nickel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | na | na | 5/8 inch | 5/8 inch | na | na | Male 37° Flare | Female 37° Flare Swivel | na | ||
| 10 C6X-SS | Backordered | 13 in stock | $103.33/each | EA | Stainless Steel | na | 5000 psi | Tube to Tube | na | SAE J514 | 90° Elbow | na | na | 5/8 inch | 14, 15, 16 mm | na | na | Male 37° Flare | Female 37° Flare Swivel | na | 0.12464028776978417 lb | |
| 10 CC5OX-S | 36 in stock | 41 in stock | $34.90/each | EA | Steel | na | 5000 psi | 37° Flare | 90 Durometer Nitrile | SAE J514 | 90° Elbow | 7/8-14 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Male SAE-ORB | na | 0.12464028776978417 lb | |
| 10 CCCTX-S | Backordered | 30 in stock | $37.40/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | 1/2-14 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Male NPT/NPTF | na | ||

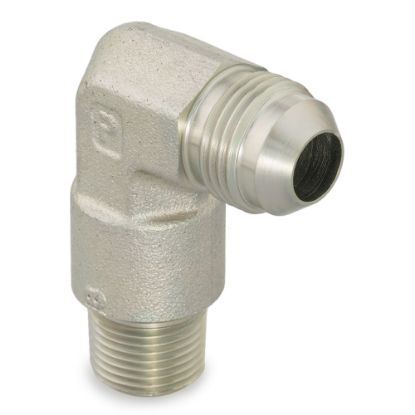

| 10 CCTX-S | Backordered | 83 in stock | $26.35/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | ||
| 10 CCTX-SS | Backordered | Backordered | $288.66/each | EA | Stainless Steel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | 1/2-14 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Male NPT/NPTF | na | ||

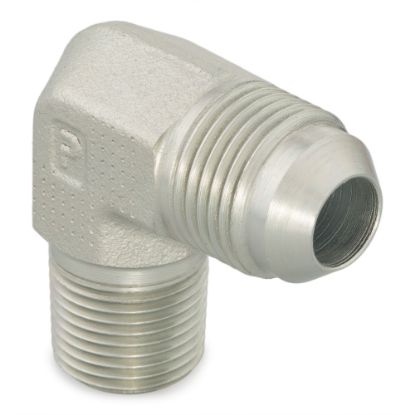

| 10 CTX-B | 7 in stock | 377 in stock | $21.23/each | EA | Brass | na | 3300 psi | 37° Flare | na | SAE J514 | 90° Elbow | 1/2-14 inch | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.05618255395683453 lb | |
| 10 CTX-S | 38 in stock | 1113 in stock | $12.64/each | EA | Steel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | na | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.06168277877697842 lb | |
| 10 CTX-SS | Backordered | 53 in stock | $76.44/each | EA | Stainless Steel | na | 5000 psi | 37° Flare | na | SAE J514 | 90° Elbow | 1/2-14 inch | na | 5/8 inch | na | na | na | Male 37° Flare | Male NPT/NPTF | na | 0.07913669064748201 lb | |

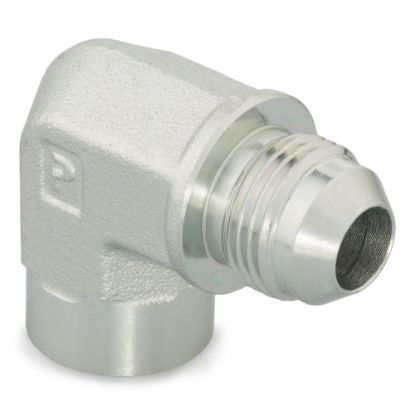

| 10 DTX-B | Backordered | Backordered | $53.18/each | EA | Brass | na | 2000 psi | Tube to NPT | na | SAE J514 | 90° Elbow | 1/2-14 inch | na | 14, 15, 16 mm | na | na | na | Male 37° Flare | Female NPT/NPTF | na | ||
| 10 DTX-S | 12 in stock | 69 in stock | $25.46/each | EA | Steel | na | 3000 psi | 37° Flare | na | SAE J514 | 90° Elbow | na | na | 5/8 inch | na | na | na | Male 37° Flare | Female NPT/NPTF | na |
