*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

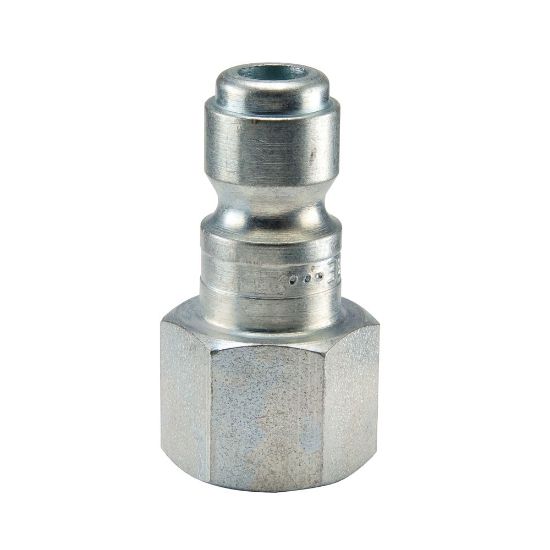

1E - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

31 in stock

Olivette, MO	20
Kansas City, KS	11

Partner Available:

443 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1E

$10.02/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

10 Series Couplers (pneumatic) up to 300 psi connect with 10 Series Nipples, Tru-Flate design, also known as the automotive interchange. They have manual sleeves and are single shut off quick couplings. Couplers have an integral sleeve guard to resist accidental disconnection. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a range of sizes and materials to be versatile for use in a variety of applications with air or fluid pressures up to 300 psi.

Technical Characteristics:

Sizes: 1/4”, 3/8", 1/2”

Materials: Brass, Steel

Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb

Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Features:

Original Tru-Flate design, developed for the automotive industry

High flow valves with minimal pressure drop for efficient performance

Sleeve guard helps to prevent accidental disconnection when in use

Optional sleeve-lock adds additional protection against accidental disconnection

Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn

Stainless steel springs, locking balls and brass valves are also offered for corrosion resistance

Steel sleeve option is available for increased durability

Applications:

Air compressors

Pneumatic air tools and hoses

Water lines

Grease guns

Cleaning equipment

Paint applicators

Drop-down air lines

Blow guns

Markets:

Automotive service and repair|Industrial|Construction|Factory automation

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Coupling Half	Male Nipple	Body Size (inch)	3/8
Hose I.D. (inch)	na	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPTF	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	250 °F	Hex Size	0.62 inch
Valve Type	Unvalved	Plating Type	Zinc with clear trivalent chromate
Interchange Type	Tru-Flate design	Maximum Operating Pressure	300 psi
Dimensional Weight	0.01999400479616307 lb	Min. Operating Temperature	-40 °F
Max. Operating Pressure	300 psi	Max. Operating Temperature	250 °F
Parker Division	Quick Coupling	Parker Group	Fluid Connector
Valve Type	Unvalved	Interchange Type	Tru-Flate Design
Hex Size	0.62 Inch	Plating Type	Zinc With Clear Trivalent Chromate

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
