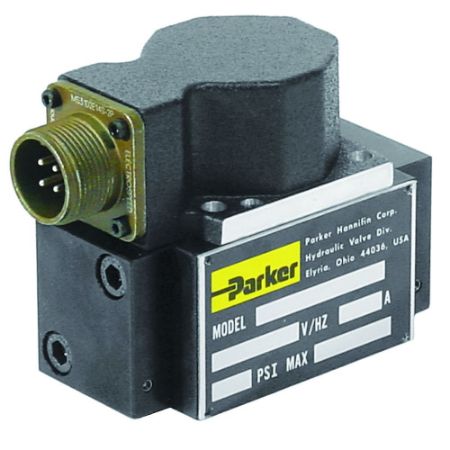

Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s SE05, SE10 and SE15 series valves have high performance spool and sleeve designs. A special jewel feedback design enhances durability and prevents ball glitch problems, which can occur in other types of servovalves. These valves are rated for 315 Bar (4500 PSI) service.

Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation

Features/Benefits:
• Aluminum body
• Lapped spool & sleeve
• Medium & high performance
• Jewel feedback ball for durability

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Mounting	Flow Rate (gpm)	Maximum Operating Pressure	Size	Body Material	Materials of Construction	Product Style	Operating Pressure	Maximum Flow Rate	Minimum Operating Temperature	Response Time	Weight	Additional Options	Resistance	Actuation Type	Seal Material	Maximum Operating Temperature	Maximum Operating Pressure
SE05HAAAAVA1	Backordered	Backordered	$27,301.68/each	EA	0.625in; 15.8mm	1	3000 PSI	15.88 mm	Aluminum	Aluminum	Servovalve	3045	4	-22	High	2.2	Consult catalog for additional features	40 Ohms; 60 mA (Parallel); 30mA (Series)	Hydraulic Pressure	Fluorocarbon	+266	3000
SE05SAAFBVA2.5	Backordered	Backordered	$24,281.88/each	EA	0.625in; 15.8mm	2.5	3000 PSI	15.88 mm	Aluminum	Aluminum	Servovalve	3045 psi	10 L/min	-22 °F	Standard	1 kg	Consult catalog for additional features	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm	Hydraulic Pressure	Fluorocarbon	+266 °F	210 bar
SE10HAAAAVA10	Backordered	Backordered	$27,301.68/each	EA	0.78in; 19.8mm	10	3000 PSI	19.81 mm	Aluminum	Aluminum	Servovalve	209 bar	40 L/min	-22 °F	High	1 kg	Consult catalog for additional features	40 Ohms; 60 mA (Parallel); 30mA (Series) ohm-cm	Hydraulic Pressure	Fluorocarbon	+266 °F	210 bar
SE10HAAAAVA5	Backordered	Backordered	$27,301.68/each	EA	0.78in; 19.8mm	5	3000 PSI	19.81 mm	Aluminum	Aluminum	Servovalve	3045 psi	60 L/min	-22 °F	High	2.2 lb	Consult catalog for additional features	40 Ohms; 60 mA (Parallel); 30mA (Series) ohm-cm	Hydraulic Pressure	Fluorocarbon	+266 °F	3000 psi
SE10HAALBNA10	Backordered	Backordered	$27,301.68/each	EA	0.78in; 19.8mm	10	3000 PSI	19.81 mm	Aluminum	Aluminum	Servovalve	3045 psi	40 L/min	-22 °F	High	2.2 lb	Consult catalog for additional features	1200 Ohms; 20 mA (Parallel); 10 mA (Series) ohm-cm	Hydraulic Pressure	Nitrile	+266 °F	3000 psi
SE10HAALBNA5	Backordered	Backordered	$27,301.68/each	EA	0.78in; 19.8mm	5	3000 PSI	19.81 mm	Aluminum	Aluminum	Servovalve	209 bar	60 L/min	-22 °F	High	2.2 lb	Consult catalog for additional features	1200 Ohms; 20 mA (Parallel); 10 mA (Series) ohm-cm	Hydraulic Pressure	Nitrile	+266 °F	3000 psi
SE15SAAFAVA15	Backordered	Backordered	$24,281.88/each	EA	0.937in; 23.8mm	15	3000 PSI	23.80 mm	Aluminum	Aluminum	Servovalve	3045 psi	60 L/min	-22 °F	Standard	2.2 lb	Consult catalog for additional features	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm	Hydraulic Pressure	Fluorocarbon	+266 °F	210 bar
SE2NAAFBVA25	Backordered	Backordered	$32,571.84/each	EA	1.375in; 34.93mm	25	3000 PSI	34.93 mm	Aluminum	Aluminum	Servovalve	210 bar	95 L/min	-22 °F	Standard	1.1 kg	Consult catalog for additional features	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm	Hydraulic Pressure	Fluorocarbon	+266 °F	210 bar
