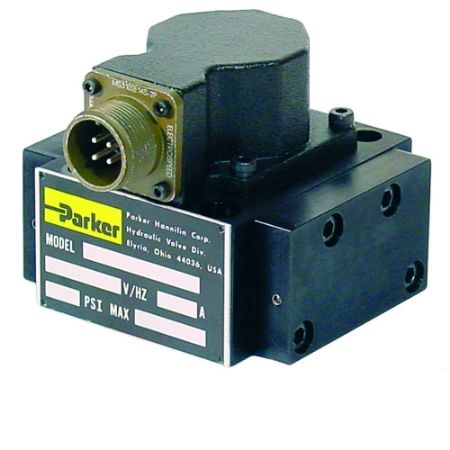

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s SE20 series valve have a wide range of flow ratings and a high-performance spool and sleeve design. A special jewel feedback design enhances durability and prevents ball glitch problems, which can occur in other types of servovalves. This valve is rated for 315 Bar (4500 PSI) service with an option for 500 Bar (7250 PSI).
Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Aluminum body
• Lapped spool and sleeve
• Medium and High performance
• Jewel feedback ball for durability
• ISO 10372 standard 22.23 mm (0.875 in.) port circle
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Aluminum body
• Lapped spool and sleeve
• Medium and High performance
• Jewel feedback ball for durability
• ISO 10372 standard 22.23 mm (0.875 in.) port circle
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Flow Rate (gpm) | Size | Signal Input | Maximum Operating Pressure | Additional Options | Actuation Type | Maximum Flow Rate | Weight | Maximum Operating Temperature | Seal Material | Valve Type | Pilot Port Type | Connection Type | Resistance | Minimum Operating Temperature | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE20HAAHPVA2.5 | Backordered | Backordered | $27,436.92/each | EA | 4500 PSI | 2.5 | ISO 10372 standard 22.23 mm | High | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 2.5 Gal/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | Internal | Port P; (+) signal to A, C | 200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAAANA1 | Backordered | Backordered | $18,453.12/each | EA | 4500 PSI | 1 | ISO 10372 standard 22.23 mm | Standard | 4500 psi | Consult catalog for additional features | Hydraulic Pressure | 4 L/min | 2.2 lb | +140 °F | Nitrile | Servovalve | Internal | Port C1, (+) signal to A, C | 40 Ohms; 60 mA (Parallel); 30mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAFBNA10 | Backordered | Backordered | $24,286.08/each | EA | 4500 PSI | 10 | ISO 10372 standard 22.23 mm | Standard | 4500 psi | Consult catalog for additional features | Hydraulic Pressure | 10 Gal/min | 2.2 lb | +140 °F | Nitrile | Servovalve | Internal | Port C2; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAFBNA5 | Backordered | Backordered | $24,286.08/each | EA | 4500 PSI | 5 | ISO 10372 standard 22.23 mm | Standard | 4500 psi | Consult catalog for additional features | Hydraulic Pressure | 60 L/min | 1 kg | +140 °F | Nitrile | Servovalve | Internal | Port C2; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAFBVA1 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 1 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 4 L/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | Internal | Port C2; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAFPNA20 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 20 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 20 Gal/min | 1 kg | +140 °F | Nitrile | Servovalve | Internal | Port P; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAFPNA5 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 5 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 5 Gal/min | 2.2 lb | +140 °F | Nitrile | Servovalve | Internal | Port P; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAFPVA16.5 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 16.5 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 16.5 Gal/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | Internal | Port P; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAHPNA10 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 10 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 10 Gal/min | 2.2 lb | +140 °F | Nitrile | Servovalve | Internal | Port P; (+) signal to A, C | 200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAAHPNA2.5 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 2.5 | ISO 10372 standard 22.23 mm | Standard | 4500 psi | Consult catalog for additional features | Hydraulic Pressure | 10 L/min | 2.2 lb | +140 °F | Nitrile | Servovalve | Internal | Port P; (+) signal to A, C | 200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SAALAVA20 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 20 | ISO 10372 standard 22.23 mm | Standard | 4500 psi | Consult catalog for additional features | Hydraulic Pressure | 20 Gal/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | Internal | Port C1, (+) signal to A, C | 1200 Ohms; 20 mA (Parallel); 10 mA (Series) ohm-cm | -4 °F | Aluminum | |
| SE20SCABBVA5 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 5 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 60 L/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | External (5th port) | Port C2; (+) signal to A, C | 300 Ohms; 30 mA (Parallel); 15 mA (Series ohm-cm | -4 °F | Aluminum | |
| SE20SCABTVA1 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 1 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 4 L/min | 2.2 lb | +140 °F | Fluorocarbon | Servovalve | External (5th port) | Port T; (+) signal to A, C | 300 Ohms; 30 mA (Parallel); 15 mA (Series ohm-cm | -4 °F | Aluminum | |
| SE20SCABTVA10 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 10 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 10 Gal/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | External (5th port) | Port T; (+) signal to A, C | 300 Ohms; 30 mA (Parallel); 15 mA (Series ohm-cm | -4 °F | Aluminum | |
| SE20SCABTVA2.5 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 2.5 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 2.5 Gal/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | External (5th port) | Port T; (+) signal to A, C | 300 Ohms; 30 mA (Parallel); 15 mA (Series ohm-cm | -4 °F | Aluminum | |
| SE20SCAFBVA1 | Backordered | Backordered | $24,281.88/each | EA | 4500 PSI | 1 | ISO 10372 standard 22.23 mm | Standard | 315 bar | Consult catalog for additional features | Hydraulic Pressure | 1 Gal/min | 1 kg | +140 °F | Fluorocarbon | Servovalve | External (5th port) | Port C2; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | -4 °F | Aluminum |
