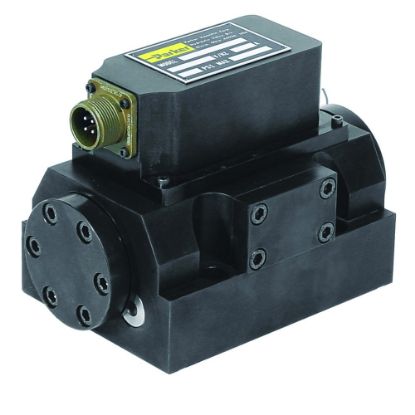

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s SE60 series valve has a wide range of flow ratings and a high-performance spool and sleeve design. A special jewel feedback design enhances durability and prevents ball glitch problems, which can occur in other types of servovalves. This valve is rated for 210 Bar (3000 PSI) service.
Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Aluminum body
• Lapped spool and sleeve
• Medium and High performance
• Jewel feedback ball for durability
• ISO 10372 size 6 standard 50.8 mm (2.000 in.) port circle
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Aluminum body
• Lapped spool and sleeve
• Medium and High performance
• Jewel feedback ball for durability
• ISO 10372 size 6 standard 50.8 mm (2.000 in.) port circle
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Resistance (Ohms) | Flow Rate (gpm) | Size | Connection Type | Resistance | Seal Material | Actuation Type | Maximum Operating Temperature | Valve Type | Maximum Operating Pressure | Pilot Port Type | Minimum Operating Temperature | Body Material | Weight | Maximum Flow Rate | Signal Input | Additional Options | Materials of Construction | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE60SAAFBVA60 | Backordered | Backordered | $40,279.68/each | EA | 3000 PSI | 80 Ohms; 40 mA (Parallel); 20 mA (Series) | 60 | 2.00in; 50.8mm | Port C2; (+) signal to A, C | 80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm | Fluorcarbon | Hydraulic Pressure | +140 °F | Servovalve | 210 bar | Internal | -4 °F | Aluminum | 3.4 kg | 60 Gal/min | Standard | Consult catalog for additional features | |||
| SE60SAAHBNA40 | Backordered | Backordered | $40,279.68/each | EA | 3000 PSI | 200 Ohms; 15 mA (Parallel); 7.5 mA (Series) | 40 | 2.00in; 50.8mm | Port C2; (+) signal to A, C | 200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm | Nitrile | Hydraulic Pressure | +140 °F | Servovalve | 210 bar | Internal | -4 °F | Aluminum | 7.5 lb | 40 Gal/min | Standard | Consult catalog for additional features | Aluminum | 2.00in; 50.8mm | |
| SE60SAALAVA60 | Backordered | Backordered | $40,279.68/each | EA | 3000 PSI | 1200 Ohms; 20 mA (Parallel); 10 mA (Series) | 60 | 2.00in; 50.8mm | Port C1, (+) signal to A, C | 1200 Ohms; 20 mA (Parallel); 10 mA (Series) ohm-cm | Fluorcarbon | Hydraulic Pressure | +140 °F | Servovalve | 210 bar | Internal | -4 °F | Aluminum | 7.5 lb | 230 L/min | Standard | Consult catalog for additional features |
