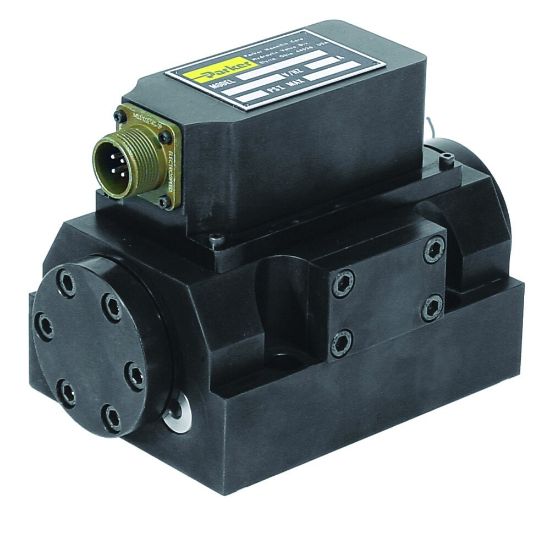

SE60SAAFBVA60 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series

Parker’s SE60 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU SE60SAAFBVA60

$40,279.68/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 PSI
Resistance (Ohms)	80 Ohms; 40 mA (Parallel); 20 mA (Series)	Flow Rate (gpm)	60
Size	2.00in; 50.8mm	Connection Type	Port C2; (+) signal to A, C
Resistance	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm	Seal Material	Fluorcarbon
Actuation Type	Hydraulic Pressure	Maximum Operating Temperature	+140 °F
Valve Type	Servovalve	Maximum Operating Pressure	210 bar
Pilot Port Type	Internal	Minimum Operating Temperature	-4 °F
Body Material	Aluminum	Weight	3.4 kg
Maximum Flow Rate	60 Gal/min	Signal Input	Standard
Additional Options	Consult catalog for additional features

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE60 Series (PDF)
