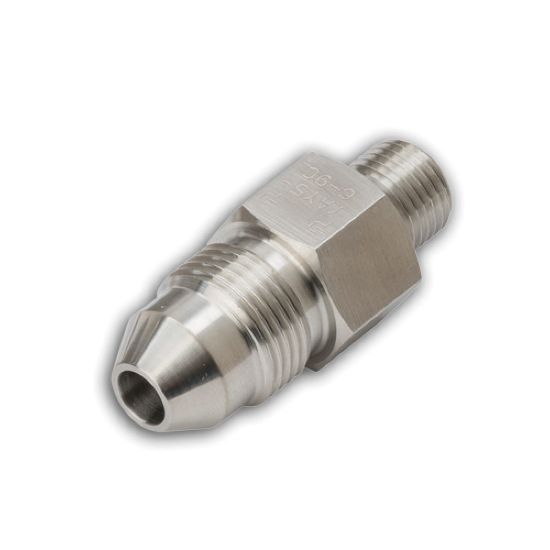

YAY5-6-9C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU YAY5-6-9C

$149.74/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Male Medium Pressure
Connection 1 Thread Size	9/16"-18 UNF	Connection 1 Type	Male Type "M"
Connection 2 Thread Size	13/16"-16 UNF	Overall Length	2 inch
Connection 2 Size	13/16"-16 inch	Materials of Construction	Stainless Steel AISI 316
Hex Size	22.35 mm	Connection 2 Type	Medium Pressure
Connection 1 Size	9/16"-18 inch	Connection 1 Type	Type "M"
Maximum Operating Pressure	20000 psi

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
