Vacuum and Medium Pressure Quick Couplings - EA Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

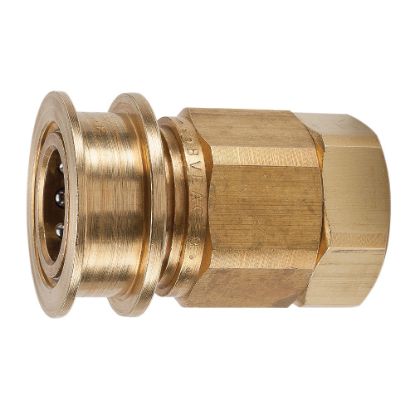

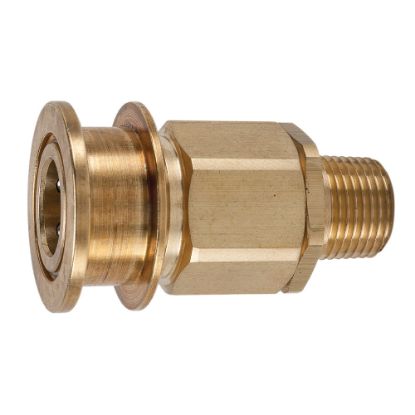

EA Series Couplers, (hydraulic, water, gas) vacuum up to 3,000 psi, connect with EA Series Nipples.
Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72" Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.
Technical Characteristics:
• Sizes: 1/4” - 3/4”
• Materials: Steel, Brass, 316 Stainless Steel
• Port Ends: Female NPTF, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
• Other options include: aluminum material, sizes up to 4", and additional port end configuration options
Markets:
• Industrial
• Construction
• Molding
• Testing
Features/Benefits:
• Multi-purpose coupling with vacuum capability
• Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
• Male and female port options
Applications:
• Test lab equipment
• Autoclave applications
• Aircraft fabrication
• Plastic molding
• Horizontal boring and dewatering
Read More...Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72" Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.
Technical Characteristics:
• Sizes: 1/4” - 3/4”
• Materials: Steel, Brass, 316 Stainless Steel
• Port Ends: Female NPTF, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
• Other options include: aluminum material, sizes up to 4", and additional port end configuration options
Markets:
• Industrial
• Construction
• Molding
• Testing
Features/Benefits:
• Multi-purpose coupling with vacuum capability
• Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
• Male and female port options
Applications:
• Test lab equipment
• Autoclave applications
• Aircraft fabrication
• Plastic molding
• Horizontal boring and dewatering
| Action | SKU | Availability | Partner Available | Price | UOM | Connection Thread Size (inch) | Body Material | Maximum Operating Pressure | Connection Type | Body Size (inch) | Coupling Half | Plating Type | Vacuum Pressure Rating | Seal Material | Valve Type | Maximum Operating Temperature | Minimum Operating Temperature | Body Material | Hex Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPEAC4-4F | Backordered | Backordered | $39.92/each | EA | 1/4 - 18 | BRASS | 1500 | Female NPTF | 1/4 | Female Coupler | na | 29.7 Inch-Hg | Nitrile | Unvalved | 250 °F | -40 °F | Brass | 0.88 inch | |

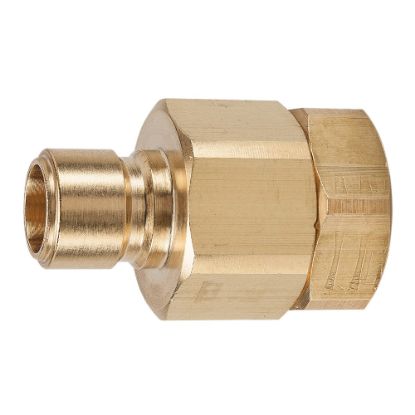

| BPEAN12-12F | Backordered | Backordered | $79.47/each | EA | 3/4 - 14 | BRASS | 1500 | Female NPTF | 3/4 | Male Nipple | na | 3/4 Inch-Hg | na | Unvalved | 250 °F | -40 °F | Brass | 1.19 inch | |
| BPEAN4-4F | 2 Limited Stock | Backordered | $21.15/each | EA | 1/4 - 18 | BRASS | 1500 | Female NPTF | 1/4 | Male Nipple | na | 1/4 Inch-Hg | na | Unvalved | 250 °F | -40 °F | Brass | 0.62 inch | |
| BPEAN6-6F | Backordered | Backordered | $28.57/each | EA | 3/8 - 18 | BRASS | 1500 | Female NPTF | 3/8 | Male Nipple | na | 3/8 Inch-Hg | na | Unvalved | 250 °F | -40 °F | Brass | 0.81 inch | |
| BPEAN8-8F | Backordered | Backordered | $29.02/each | EA | 1/2 - 14 | BRASS | 1500 | Female NPTF | 1/2 | Male Nipple | na | 1/2 Inch-Hg | na | Unvalved | 250 °F | -40 °F | Brass | 1.0 inch | |
| BVEAC12-12F | Backordered | Backordered | $191.97/each | EA | 3/4 - 14 | BRASS | 1500 | Female NPTF | 3/4 | Female Coupler | na | 29.7 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.5 inch | |
| BVEAC4-4F | 6 in stock | Backordered | $55.06/each | EA | 1/4 - 18 | BRASS | 1500 | Female NPTF | 1/4 | Female Coupler | na | 29.7 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 0.88 inch | |
| BVEAC6-6F | Backordered | Backordered | $148.04/each | EA | 3/8 - 18 | BRASS | 1500 | Female NPTF | 3/8 | Female Coupler | na | 29.7 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.0 inch | |
| BVEAC6-6FE | Backordered | Backordered | $129.63/each | EA | 3/8 - 18 | BRASS | 1500 | Female NPTF | 3/8 | Female Coupler | n/a | 29.7 Inch-Hg | Ethylene Propylene | Poppet | 300 °F | -65 °F | Brass | 1 inch | |
| BVEAC6-6M | Backordered | Backordered | $104.33/each | EA | 3/8 - 18 | BRASS | 1500 | Male NPTF | 3/8 | Female Coupler | na | 29.7 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.0 inch | |
| BVEAC8-8F | Backordered | Backordered | $93.11/each | EA | 1/2 - 14 | BRASS | 1500 | Female NPTF | 1/2 | Female Coupler | na | 29.7 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.19 inch | |
| BVEAN12-12F | Backordered | Backordered | $162.84/each | EA | 3/4 - 14 | BRASS | 1500 | Female NPTF | 3/4 | Male Nipple | na | 3/4 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.5 inch | |

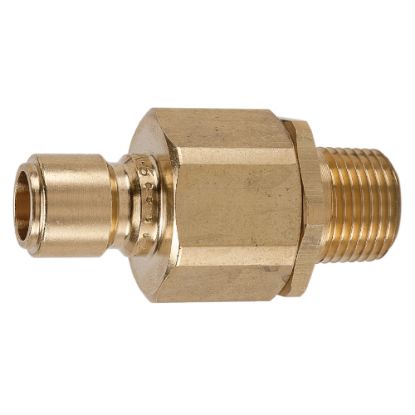

| BVEAN12-12M | Backordered | Backordered | $116.70/each | EA | 3/4 - 14 | BRASS | 1500 | Male NPTF | 3/4 | Male Nipple | na | 3/4 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.5 inch | |
| BVEAN6-6F | Backordered | Backordered | $58.89/each | EA | 3/8 - 18 | BRASS | 1500 | Female NPTF | 3/8 | Male Nipple | na | 3/8 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.0 inch | |
| BVEAN6-6FE | Backordered | Backordered | $69.83/each | EA | 3/8 - 18 | BRASS | 1500 | Female NPTF | 3/8 | Male Nipple | n/a | 3/8 Inch-Hg | Ethylene Propylene | Poppet | 300 °F | -65 °F | Brass | 1 inch | |
| BVEAN6-6M | Backordered | Backordered | $60.37/each | EA | 3/8 - 18 | BRASS | 1500 | Male NPTF | 3/8 | Male Nipple | na | 3/8 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.0 inch | |
| BVEAN8-8F | Backordered | Backordered | $57.58/each | EA | 1/2 - 14 | BRASS | 1500 | Female NPTF | 1/2 | Male Nipple | na | 1/2 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.19 inch | |
| BVEAN8-8M | Backordered | 2 Limited Stock | $62.43/each | EA | 1/2 - 14 | BRASS | 1500 | Male NPTF | 1/2 | Male Nipple | na | 1/2 Inch-Hg | Nitrile | Poppet | 250 °F | -40 °F | Brass | 1.19 inch | |
| PEAC12-12F | Backordered | 56 in stock | $51.75/each | EA | 3/4 - 14 | Steel | 2000 | Female NPTF | 3/4 | Female Coupler | Zinc with clear trivalent chromate | 29.7 Inch-Hg | Nitrile | Unvalved | 250 °F | -40 °F | Steel | 1.50 inch | |
| PEAC6-6F | Backordered | Backordered | $38.92/each | EA | 3/8 - 18 | Steel | 3000 | Female NPTF | 3/8 | Female Coupler | Zinc with clear trivalent chromate | 29.7 Inch-Hg | Nitrile | Unvalved | 250 °F | -40 °F | Steel | 1.0 inch |
