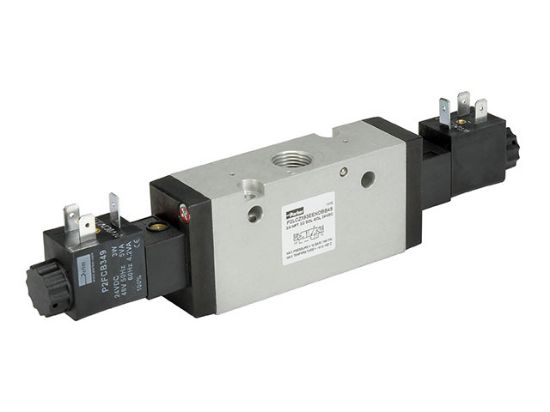

Picture of Viking Lite Series Double Solenoid 3-way 2-position Valve - P2LAZ391EENDBB49

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Viking Lite Series Double Solenoid 3-way 2-position Valve - P2LAZ391EENDBB49

Double Solenoid, 3-way, 2-position
Availability:
Backordered
SKU P2LAZ391EENDBB49
$88.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort1/8 NPT
CV Factor0.6UOMEA
Pilot SupplyInternalSolenoid Voltage24VDC
Override TypeNon-lockingOperator Type DetailDouble
Pkg Qty1Trade NameViking Lite
Operator Type DetailDoubleOperating Temperature14°F to 122°F (-10°C to 50°C)
Pneumatic Valve TypeInline ValvePort1/8 NPT
Solenoid Connection22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)Operator TypeSolenoid
CV Factor0.6Parker GroupAutomation
Supply Pressure Range22 to 145 PSIG (1.5 to 10 bar)Parker DivisionPneumatic
Port Inch/BSPNPTValve Positions2-position
SeriesViking LitePilot SupplyInternal
Valve Passages3-wayOverride TypeNon-locking
Solenoid Voltage24VDC
