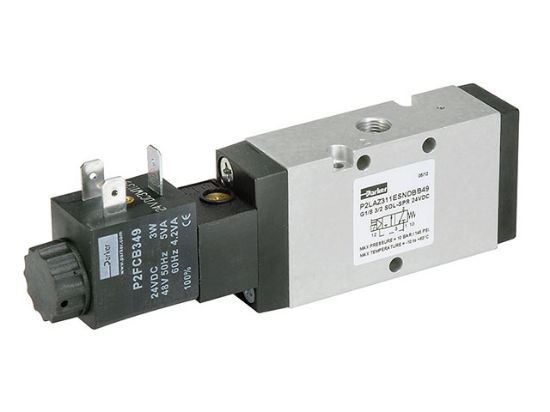

P2LBZ392ESNDBB49 - Viking Lite Series Single Solenoid 3-way 2-position Valve

Name: P2LBZ392ESNDBB49 - Viking Lite Series Single Solenoid 3-way 2-position Valve
SKU: P2LBZ392ESNDBB49
Price: 61.44 USD
Availability: LimitedAvailability

Single Solenoid, 3-way, 2-position, Spring Return

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

40 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P2LBZ392ESNDBB49

$61.44/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	1/4 NPT
Offset Return Type	Spring Return	Operator Type Detail	Single
Solenoid Voltage	24VDC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	1.5
Parker Group	Automation	Parker Division	Pneumatic
Port	1/4 NPT	Port Inch/BSP	NPT
Pneumatic Valve Type	Inline Valve	Valve Positions	2-position
Offset Return Type	Spring Return	Series	Viking Lite
Trade Name	Viking Lite	Valve Passages	3-way
Operator Type	Solenoid	Operator Type Detail	Single
Solenoid Voltage	24VDC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	1.5
Operating Temperature	14°F to 122°F (-10°C to 50°C)	Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
