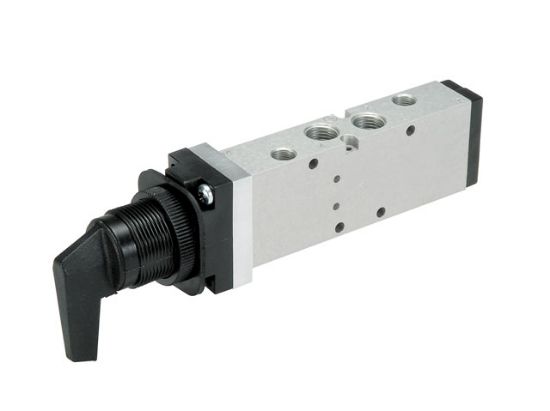

P2LBX512JJ - Viking Xtreme Series Manual/Mechanical Valve - 3-way and 4-way 2-position Twist Handle

Viking Xtreme Series Manual/Mechanical Valve - 3-way and 4-way 2-position Twist Handle

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU P2LBX512JJ

$198.86/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Operator Type Detail	Twist Handle
UOM	EA	Port	1/4 BSPP
Pkg Qty	1	Offset Return Type	Detent
CV Factor	1.3	Port Inch/BSP	BSPP
CV Factor	1.3	Operator Type	Manual/Mechanical
Valve Positions	2-position	Valve Passages	4-way
Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)	Offset Return Type	Detent
Parker Division	Pneumatic	Operating Temperature	-40°F to 140°F (-40°C to 60°C)
Operator Type Detail	Twist Handle	Parker Group	Automation
Series	Viking Xtreme	Port	1/4 BSPP

Product resources
