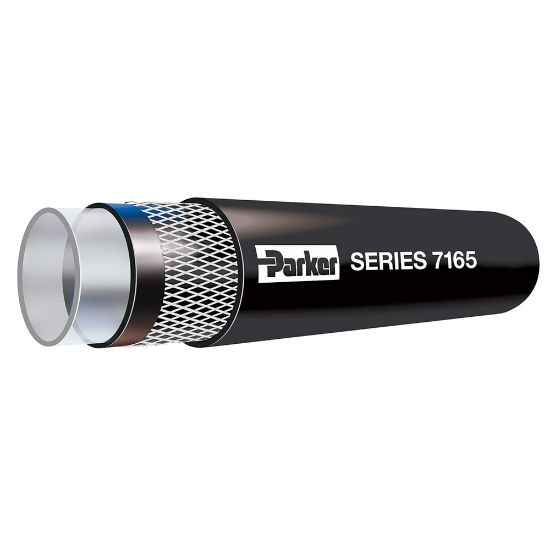

7165-25250 - WAVEMASTER™ Marine Barrier Fuel Line Hose, Series 7165

Wavemaster Marine Barrier Fuel Line Hose is designed for marine engine fuel line and venting in applications to 212°F and 100 psi, Series 7165

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	274 in stock

SKU 7165-25250

$3.71/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Maximum Operating Temperature	212	Minimum Bend Radius	3
Minimum Operating Temperature	-20	Weight	0.11
Cover Color	Black	Maximum Operating Pressure	7
Hose Reinforcement Material	2 Plies of Textile	Inside Diameter	1/4
Outside Diameter	0.500	Media	Fuels - Check fuel type with our catalogue chart.
Cover Material	Nitrile/PVC	Hose Inner Tube Material	Translucent
Specifications Met	ABYC

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
