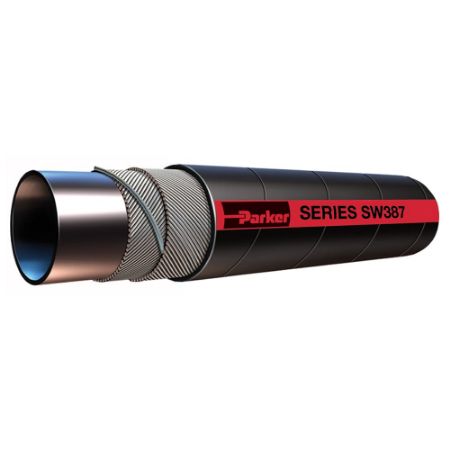

WILDCATTER® Oilfield Hot Tar Hose, Series SW387

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series SW387 Wildcatter Oilfield Hot Tar Hose provides excellent medium pressure, heavy duty service across multiple bulk loading/unloading/truck applicator applications. The hose provides kink resistance and flexibility, making the hose easy to handle, and the specially formulated rubber compounds keep the hose from drying out, cracking and prematurely failing to provide maximum performance.

Markets:
• General Industrial
• Oil & Gas

Features/Benefits:
• Tube: Black nitrile for superior heat and oil resistance to 350°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile for abrasion, heat, and oil resistance and durability.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:
- media
• Hot asphalt
• Hot oil
• Hot tar
- usage
• Oilfield equipment and service trucks
• Storage tanks
• In-plant transfer

Safety/Technical:
• Design Factor: 4:1

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Maximum Working Pressure (psi)	Cover Structure	Design Factor	Maximum Operating Pressure	Media	Weight	Minimum Operating Temperature	Inside Diameter	Vacuum Pressure Rating	Cover Color	Cover Material	Hose Reinforcement Material	Package Type	Outside Diameter	Maximum Operating Temperature	Minimum Bend Radius	Hose Inner Tube Material	Length per Package
SW387-1500	Backordered	Backordered	$33.07/foot	FT	1-1/2	150	Wrapped	4:1	10.3 bar	Hot Asphalt (Tar)	0.98 lb	-40 °C	38.1 mm	Full	Black	Nitrile	2 Plies of Textile with Dual Wire Helix	Coil	2.130 inch	350 °F	152.4 mm	Nitrile	100 ft
SW387-2000	Backordered	81 in stock	$40.95/foot	FT	2	150	Wrapped	4:1	150 psi	Chemicals (Glue)	1.43 lb	-40 °C	2 inch	Full	Black	Nitrile	2 Plies of Textile with Dual Wire Helix	Coil	66.7 mm	177 °C	8 inch	Nitrile	100 ft
SW387-3000	Backordered	99 in stock	$58.28/foot	FT	3	150	Wrapped	4:1	150 psi	Chemicals (Glue)	2.42 lb	-40 °F	3 inch	Full	Black	Nitrile	2 Plies of Textile with Dual Wire Helix	Coil	95.3 mm	177 °C	304.8 mm	Black	100 ft
SW387-4000	Backordered	Backordered	$78.44/foot	FT	4	150	Wrapped	4:1	150 psi	Lubricants (Oils)	1.63 kg	-40 °C	101.6 mm	Full	Black	Nitrile	2 Plies of Textile with Dual Wire Helix	Coil	122.2 mm	350 °F	18 inch	Black	100 ft
