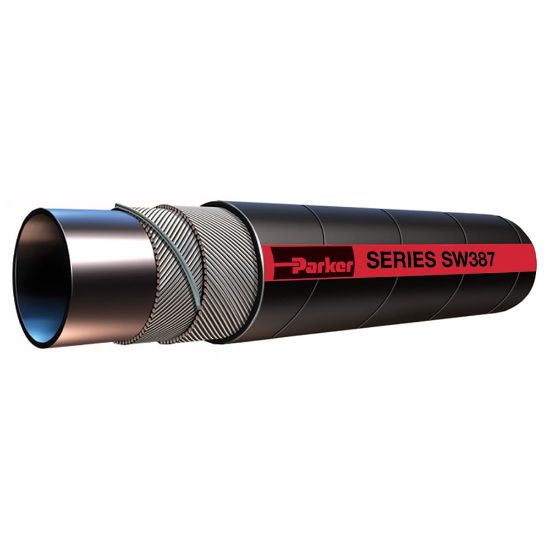

Picture of WILDCATTER® Oilfield Hot Tar Hose, Series SW387 - SW387-1500

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

WILDCATTER® Oilfield Hot Tar Hose, Series SW387 - SW387-1500

Wildcatter Oilfield Hot Tar Hose is designed for transfer of hot oil and tar in applications to 350°F and 150 psi, Series SW387
Availability:
Backordered
SKU SW387-1500
$33.07
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1-1/2
Maximum Working Pressure (psi)150Cover StructureWrapped
Design Factor4:1Maximum Operating Pressure10.3 bar
MediaHot Asphalt (Tar)Weight0.98 lb
ApplicationMaterial HandlingMinimum Operating Temperature-40 °C
Inside Diameter38.1 mmVacuum Pressure RatingFull
Cover ColorBlackCover MaterialNitrile
Hose Reinforcement Material2 Plies of Textile with Dual Wire HelixPackage TypeCoil
Outside Diameter2.130 inchMaximum Operating Temperature350 °F
Minimum Bend Radius152.4 mmHose Inner Tube MaterialNitrile
DivisionHose Products DivisionLength per Package100 ft
