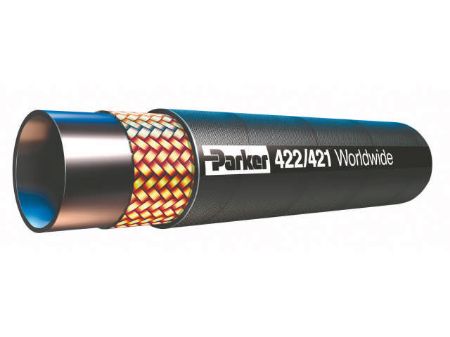

Parker’s 422 hose is a worldwide hydraulic industry standard hose manufactured to strict international specifications to offer customers consistency of performance combined with improved availability anywhere in the world. The 422 hose is designed to meet global industry standards in order to meet the requirements of any job around the world. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Utility Equipment

• Machine Tool

• Waste & Refuse

• Material Handling

Features/Benefits:

• One-wire braid hose design manufactured to international specifications

• Increased working pressures for improved reliability and expanded applications versus standard SAE 100R1

• Synthetic rubber inner tube for greater fluid compatibility and bio-oil resistance

• 575-3250 PSI working pressure in different sizes

Industry Standards:

• ISO 1436-1 Type 1SN / SAE J517 100R1AT / SAE J1942 / EN 853 Type 1SN

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings

• 42 series fittings
