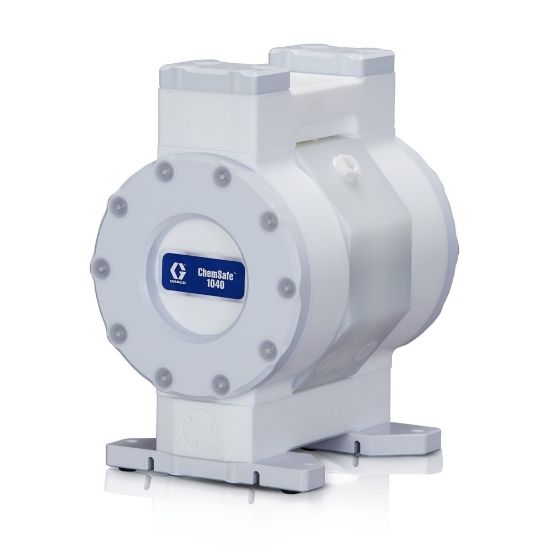

24X424

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X424

Products specifications

Attribute name	Attribute value
Material	PTFE	Series	1040
Connection Type	Threaded	Type	Pneumatic
Maximum Flow Rate	39 GPM	Manifold Configuration	Center Port
Minimum Operating Temperature	32 deg F	Fluid Outlet Size	1 Inch
Maximum Operating Temperature	212 deg F	Fluid Outlet Thread Type	BSP
Fluid Inlet Size	1 Inch	Fluid Inlet Thread Type	BSP
Maximum Solid Size	80 Inch	Center Section Material	Polypropylene
Maximum Air Consumption	46 SCFM	Air Inlet Thread Type	BSPT
Fluid Outlet Thread Gender	Female	Air Inlet Size	1/4 Inch
Air Inlet Thread Gender	Female	Model	ChemSafe
Maximum Cycle Rate	260 CPM	Minimum Storage Temperature	32 deg F
Fluid Inlet Thread Gender	Female
