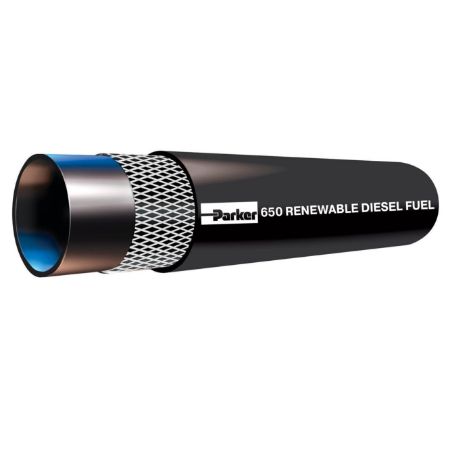

650 Renewable Diesel Fuel Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The 650 Renewable Fuel Hose from the Hose Products Division of Parker Hannifin is a “one does all” fuel line hose. The 650 meets or exceeds the SAE J30R7 and meets or exceeds the performance of SAE J30R2 (T1, T2, and T3), R3, and R13 (T1 and T2) specifications. Making it easier for the customer to meet multiple variations of the fuel system requirements and specifications for the components of their equipment. The 650 Renewable Fuel Hose not only handles all the gasoline and diesel requirements but also is compatible with renewable biodiesels up to 100%. The hose is rated from -40°F to +257°F. Qualified with the HY Series (offered in steel and stainless steel, over B20 bio diesel fuel recommended to use stainless or nylon fittings) and J2044 fittings, which gives multiple options to meet the application’s requirements.

Features/Benefits

•Rated to SAE J30R7

•Meets or exceeds performance of SAE J30R2, T1, T2, & T3

•Meets or exceeds performance of SAE J30R3

•Meets or exceeds performance of SAE J30R13

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Maximum Operating Temperature	Weight	Cover Material	Maximum Operating Pressure	Specifications Met	Minimum Bend Radius	Hose Inside Diameter	Hose Outside Diameter	Hose Inner Tube Material	Minimum Operating Temperature	Hose Reinforcement Material	Media
650-10-RL	Backordered	Backordered	$5.27/foot	FT	275 °F	0.34 kg/ft	Black synthetic rubber	24.1 bar	SAE J30R7	127 mm	5/8 inch	23.8 mm	Black synthetic rubber	-40 °C	Multiple aramid plies	Fuels
650-12-RL	Backordered	80 in stock	$6.05/foot	FT	125 °C	0.50 kg/ft	Black synthetic rubber	300 psi	SAE J30R7	180 mm	19.1 mm	1.13 inch	Black synthetic rubber	-40 °C	Multiple aramid plies	Fuels
650-3-RL	Backordered	2435 in stock	$2.26/foot	FT	125 °C	0.11 kg/ft	Black synthetic rubber	34.5 bar	30R3	32 mm	4.8 mm	10.3 mm	Black synthetic rubber	-40 °F	Multiple aramid plies	Fuels
650-4-RL	Backordered	2450 in stock	$2.40/foot	FT	125 °C	0.13 kg/ft	Black synthetic rubber	27.6 bar	SAE J30R7	1.50 inch	6.4 mm	12.7 mm	Black synthetic rubber	-40 °F	Multiple aramid plies	Fuels
650-5-RL	Backordered	Backordered	$2.71/foot	FT	125 °C	0.10 lb/ft	Black synthetic rubber	27.6 bar	30R3	2.00 inch	7.9 mm	0.56 inch	Black synthetic rubber	-40 °F	Multiple aramid plies	Fuels
650-6-RL	Backordered	Backordered	$3.04/foot	FT	125 °C	0.20 kg/ft	Black synthetic rubber	400 psi	SAE J30R7	2.50 inch	9.5 mm	15.9 mm	Black synthetic rubber	-40 °F	Multiple aramid plies	Fuels
650-8-RL	Backordered	Backordered	$4.65/foot	FT	275 °F	0.21 lb/ft	Black synthetic rubber	2.76 MPa	30R2 Type 1, 2, 3	4.00 inch	1/2 inch	0.78 inch	Black synthetic rubber	-40 °C	Multiple aramid plies	Fuels
