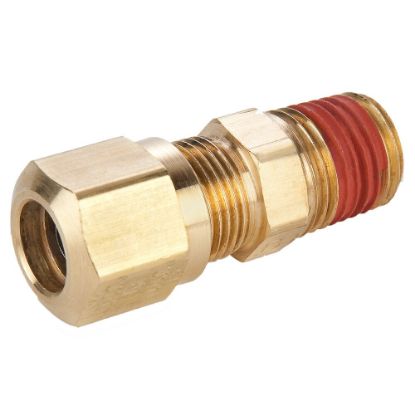

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Being the world’s leader in leak free technologies Parker’s NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.

Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing

Markets:

• Heavy duty truck
• Trailer
• Mobile

Features/Benefits:

• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Ribbed sleeve for compression and positive grip
• Stainless Steel tube support
• Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
• Electroless nickel plated bodies can be used with bio-diesel
• All brass air brake fitting
• Use with J844 type A & B nylon tubing in air brake systems
• Pre-applied thread sealant

Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls

Custom configurations and sizes are available upon request. Contact us for additional information.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Connection 2 Tube O.D. (inch)	Connection 1 Tube O.D. (inch)	Style	Connection 1 Style	Connection 3 Thread Size (inch)	Connection 3 Style	Connection 2 Style	Connection 2 Thread Size (inch)	Shape	Dimensional Weight	Minimum Operating Temperature	Maximum Operating Temperature	Maximum Operating Pressure	Nut Material	Tube Material	Body Material	Sleeve Material	Specifications Met	Thread Sealant Material
VS68NTA-6-2	32 in stock	290 in stock	$8.32/each	EA	na	3/8	Tube to Pipe	Compression	na	na	Male Pipe	1/8	Connector	0.27594424460431655 lb	-40 °C	93 °C	10 bar	Brass	Stainless Steel	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
VS68NTA-6-4	156 in stock	1489 in stock	$6.55/each	EA	na	3/8	Tube to Pipe	Compression	na	na	Male Pipe	1/4	Connector	0.11037769784172662 lb	-40 °F	200 °F	150 psi	Brass	Stainless Steel	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
VS68NTA-6-6	19 in stock	965 in stock	$9.20/each	EA	na	3/8	Tube to Pipe	Compression	na	na	Male Pipe	3/8	Connector	0.27594424460431655 lb	-40 °C	200 °F	10 bar	Brass	Stainless Steel	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
VS68NTA-6-8	10 in stock	244 in stock	$17.67/each	EA	na	3/8	Tube to Pipe	Compression	na	na	Male Pipe	1/2	Connector	0.27594424460431655 lb	-40 °F	200 °F	10 bar	Brass	SAE J844 Type A & B Nylon Tubing	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
VS68NTA-8-4	37 in stock	148 in stock	$11.52/each	EA	na	1/2	Tube to Pipe	Compression	na	na	Male Pipe	1/4	Connector	0.27594424460431655 lb	-40 °C	200 °F	10 bar	Brass	SAE J844 Type A & B Nylon Tubing	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
VS68NTA-8-6	30 in stock	401 in stock	$10.78/each	EA	na	1/2	Tube to Pipe	Compression	na	na	Male Pipe	3/8	Connector	0.27594424460431655	-40	200	150	Brass	SAE J844 Type A & B Nylon Tubing	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
VS68NTA-8-8	18 in stock	365 in stock	$20.36/each	EA	na	1/2	Tube to Pipe	Compression	na	na	Male Pipe	1/2	Connector	0.27594424460431655 lb	-40 °F	200 °F	150 psi	Brass	Stainless Steel	Brass	Brass	DOT FMVSS 571.106, SAE J1131, SAE J246	Vibra-Seal 516
