Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Being the world’s leader in leak free technologies Parker’s NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Ribbed sleeve for compression and positive grip
• Stainless Steel tube support
• Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
• Electroless nickel plated bodies can be used with bio-diesel
• All brass air brake fitting
• Use with J844 type A & B nylon tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 3 Style | Connection 3 Thread Size (inch) | Connection 2 Tube O.D. (inch) | Shape | Connection 1 Style | Connection 1 Tube O.D. (inch) | Connection 2 Thread Size (inch) | Connection 2 Style | Style | Minimum Operating Temperature | Body Material | Maximum Operating Pressure | Maximum Operating Temperature | Nut Material | Sleeve Material | Tube Material | Specifications Met | Thread Sealant Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66NTA-8-8 | 7 in stock | 81 in stock | $30.88/each | EA | na | na | na | Connector | Compression | 1/2 | 1/2 | Female Pipe | Tube to Female Pipe | -40 °F | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||

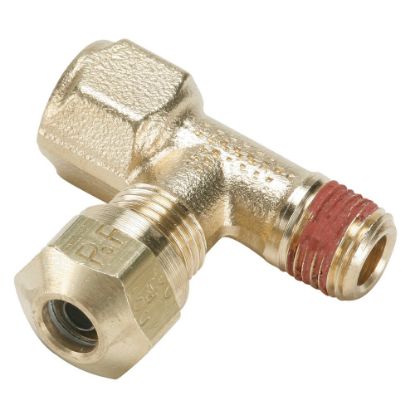

| VS176NTA-4-2 | Backordered | 2 Limited Stock | $55.73/each | EA | Female Pipe | 1/8 | na | Adapter Tee | Compression | 1/4 | 1/8 | Male Pipe | Tube to Pipe | -40 °F | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||

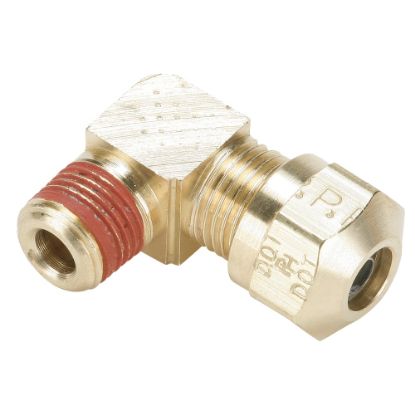

| VS269NTA-10-12 | Backordered | 17 in stock | $37.22/each | EA | na | na | na | 90° Elbow | Compression | 5/8 | 3/4 | Male Pipe | Tube to Pipe | -40 °F | Brass | 10 bar | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| VS269NTA-10-6 | 20 in stock | 170 in stock | $26.63/each | EA | na | na | na | 90° Elbow | Compression | 5/8 | 3/8 | Male Pipe | Tube to Pipe | -40 °C | Brass | 150 psi | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-10-8 | 21 in stock | 269 in stock | $26.91/each | EA | na | na | na | 90° Elbow | Compression | 5/8 | 1/2 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-12-12 | 1 Limited Stock | 185 in stock | $57.40/each | EA | na | na | na | 90° Elbow | Compression | 3/4 | 3/4 | Male Pipe | Tube to Pipe | -40 °F | Brass | 150 psi | 93 °C | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.5518884892086331 lb | |
| VS269NTA-12-8 | 21 in stock | 164 in stock | $60.96/each | EA | na | na | na | 90° Elbow | Compression | 3/4 | 1/2 | Male Pipe | Tube to Pipe | -40 °F | Brass | 150 psi | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-3-2 | Backordered | 55 in stock | $19.70/each | EA | na | na | na | 90° Elbow | Compression | 3/16 | 1/8 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| VS269NTA-3-4 | Backordered | 36 in stock | $22.23/each | EA | na | na | na | 90° Elbow | Compression | 3/16 | 1/4 | Male Pipe | Tube to Pipe | -40 °F | Brass | 150 psi | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| VS269NTA-4-2 | 65 in stock | 1190 in stock | $6.85/each | EA | na | na | na | 90° Elbow | Compression | 1/4 | 1/8 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-4-4 | 31 in stock | 693 in stock | $10.63/each | EA | na | na | na | 90° Elbow | Compression | 1/4 | 1/4 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-4-6 | 30 in stock | 140 in stock | $9.33/each | EA | na | na | na | 90° Elbow | Compression | 1/4 | 3/8 | Male Pipe | Tube to Pipe | -40 °C | Brass | 150 psi | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-6-2 | 30 in stock | 590 in stock | $9.20/each | EA | na | na | na | 90° Elbow | Compression | 3/8 | 1/8 | Male Pipe | Tube to Pipe | -40 °F | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.11037769784172662 lb | |
| VS269NTA-6-4 | 82 in stock | 1195 in stock | $8.79/each | EA | na | na | na | 90° Elbow | Compression | 3/8 | 1/4 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.11037769784172662 lb | |
| VS269NTA-6-6 | 9 in stock | 499 in stock | $10.66/each | EA | na | na | na | 90° Elbow | Compression | 3/8 | 3/8 | Male Pipe | Tube to Pipe | -40 °C | Brass | 150 psi | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-6-8 | 21 in stock | 157 in stock | $18.46/each | EA | na | na | na | 90° Elbow | Compression | 3/8 | 1/2 | Male Pipe | Tube to Pipe | -40 °F | Brass | 10 bar | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-8-4 | 2 Limited Stock | 205 in stock | $18.87/each | EA | na | na | na | 90° Elbow | Compression | 1/2 | 1/4 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-8-6 | 135 in stock | 833 in stock | $15.82/each | EA | na | na | na | 90° Elbow | Compression | 1/2 | 3/8 | Male Pipe | Tube to Pipe | -40 °F | Brass | 150 psi | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS269NTA-8-8 | 41 in stock | 549 in stock | $21.60/each | EA | na | na | na | 90° Elbow | Compression | 1/2 | 1/2 | Male Pipe | Tube to Pipe | -40 °F | Brass | 10 bar | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | 0.27594424460431655 lb | |
| VS271NTA-10-8 | Backordered | 31 in stock | $73.60/each | EA | na | na | na | Run Tee | Compression | 5/8 | 1/2 | Male Pipe | Tube to Pipe | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 |
