Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Being the world’s leader in leak free technologies Parker’s NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Ribbed sleeve for compression and positive grip
• Stainless Steel tube support
• Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
• Electroless nickel plated bodies can be used with bio-diesel
• All brass air brake fitting
• Use with J844 type A & B nylon tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Tube O.D. (inch) | Style | Connection 1 Style | Connection 2 Style | Connection 1 Tube O.D. (inch) | Connection 3 Thread Size (inch) | Connection 3 Style | Connection 2 Thread Size (inch) | Nut Material | Tube Material | Body Material | Sleeve Material | Specifications Met | Minimum Operating Temperature | Maximum Operating Temperature | Thread Sealant Material | Maximum Operating Pressure | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

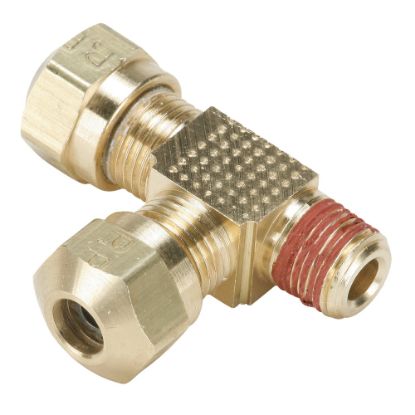

| VS271NTA-4-2 | 23 in stock | 99 in stock | $14.02/each | EA | Run Tee | na | Tube to Pipe | Compression | Male Pipe | 1/4 | na | na | 1/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °F | 200 °F | Vibra-Seal 516 | 150 psi | ||
| VS271NTA-4-4 | 21 in stock | 63 in stock | $36.61/each | EA | Run Tee | na | Tube to Pipe | Compression | Male Pipe | 1/4 | na | na | 1/4 | Brass | SAE J844 Type A & B Nylon Tubing | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 150 psi | ||
| VS271NTA-6-4 | 32 in stock | 181 in stock | $18.27/each | EA | Run Tee | na | Tube to Pipe | Compression | Male Pipe | 3/8 | na | na | 1/4 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 10 bar | 0.27594424460431655 lb | |
| VS271NTA-6-6 | 19 in stock | 133 in stock | $29.77/each | EA | Run Tee | na | Tube to Pipe | Compression | Male Pipe | 3/8 | na | na | 3/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °F | 93 °C | Vibra-Seal 516 | 150 psi | 0.27594424460431655 lb | |
| VS271NTA-8-6 | Backordered | 68 in stock | $32.91/each | EA | Run Tee | na | Tube to Pipe | Compression | Male Pipe | 1/2 | na | na | 3/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 93 °C | Vibra-Seal 516 | 10 bar | ||
| VS271NTA-8-8 | 5 in stock | 44 in stock | $52.34/each | EA | Run Tee | na | Tube to Pipe | Compression | Male Pipe | 1/2 | na | na | 1/2 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °F | 200 °F | Vibra-Seal 516 | 150 psi | ||

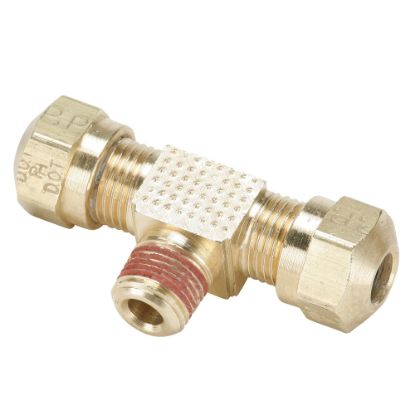

| VS272NTA-10-8 | 11 in stock | 16 in stock | $75.34/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 5/8 | na | na | 1/2 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °F | 93 °C | Vibra-Seal 516 | 150 psi | ||
| VS272NTA-3-2 | Backordered | 5 in stock | $91.05/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 3/16 | na | na | 1/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 10 bar | ||
| VS272NTA-4-2 | 44 in stock | 14 in stock | $14.40/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 1/4 | na | na | 1/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °F | 93 °C | Vibra-Seal 516 | 150 psi | 0.27594424460431655 lb | |
| VS272NTA-4-4 | 1 Limited Stock | 137 in stock | $32.50/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 1/4 | na | na | 1/4 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 150 psi | 0.27594424460431655 lb | |
| VS272NTA-6-2 | 6 in stock | 30 in stock | $17.35/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 3/8 | na | na | 1/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 10 bar | ||
| VS272NTA-6-4 | 13 in stock | 85 in stock | $18.33/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 3/8 | na | na | 1/4 | Brass | SAE J844 Type A & B Nylon Tubing | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 150 psi | 0.27594424460431655 lb | |
| VS272NTA-6-4-4 | Backordered | 5 in stock | $23.69/each | EA | Branch Tee | na | Tube to Pipe | Compression | Compression | 3/8 | 1/4 | Male Pipe | 1/4 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 93 °C | Vibra-Seal 516 | 150 psi | ||
| VS272NTA-6-6 | 34 in stock | 134 in stock | $18.78/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 3/8 | na | na | 3/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 150 psi | 0.27594424460431655 lb | |
| VS272NTA-8-4 | Backordered | 32 in stock | $36.68/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 1/2 | na | na | 1/4 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 93 °C | Vibra-Seal 516 | 150 psi | ||
| VS272NTA-8-6 | 4 in stock | 78 in stock | $29.07/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 1/2 | na | na | 3/8 | Brass | SAE J844 Type A & B Nylon Tubing | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 93 °C | Vibra-Seal 516 | 10 bar | 0.27594424460431655 lb | |
| VS272NTA-8-8 | Backordered | 83 in stock | $53.66/each | EA | Branch Tee | na | Tube to Pipe | Compression | Male Pipe | 1/2 | na | na | 1/2 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 150 psi | ||

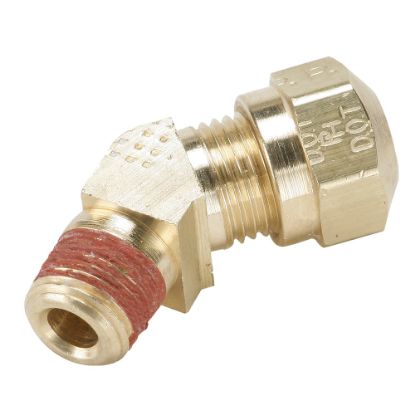

| VS279NTA-10-6 | 16 in stock | 78 in stock | $38.67/each | EA | 45° Elbow | na | Tube to Pipe | Compression | Male Pipe | 5/8 | na | na | 3/8 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °F | 93 °C | Vibra-Seal 516 | 10 bar | 0.27594424460431655 lb | |
| VS279NTA-10-8 | 16 in stock | 80 in stock | $42.26/each | EA | 45° Elbow | na | Tube to Pipe | Compression | Male Pipe | 5/8 | na | na | 1/2 | Brass | SAE J844 Type A & B Nylon Tubing | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 200 °F | Vibra-Seal 516 | 10 bar | 0.27594424460431655 lb | |
| VS279NTA-12-8 | Backordered | 43 in stock | $67.14/each | EA | 45° Elbow | na | Tube to Pipe | Compression | Male Pipe | 3/4 | na | na | 1/2 | Brass | Stainless Steel | Brass | Brass | DOT FMVSS 571.106, SAE J1131, SAE J246 | -40 °C | 93 °C | Vibra-Seal 516 | 150 psi | 0.27594424460431655 lb |
