ARO 210 Interchange, Quick Connect Air Couplings - 50 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
50 Series Couplers connect with 50 Series Nipples and are interchangeable with the ARO 210 couplers. 50 Series quick couplings are pneumatic/air, manual sleeve, single shut off up to 300 psi. Couplers have an integral sleeve guard to resist accidental disconnection. The tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in 1/4" size.
Technical Characteristics:
• Size: 1/4”
• Material: Brass Couplers; Steel Nipples
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Furniture building
• Textile industry
• Industrial
• Construction
• Factory automation
Features/Benefits:
• Interchangeable with ARO 210 nipples
• Steel nipples are case hardened for durability
• Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Paint applicators
Read More...Technical Characteristics:
• Size: 1/4”
• Material: Brass Couplers; Steel Nipples
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Furniture building
• Textile industry
• Industrial
• Construction
• Factory automation
Features/Benefits:
• Interchangeable with ARO 210 nipples
• Steel nipples are case hardened for durability
• Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Paint applicators
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Type | Hose I.D. (inch) | Connection Thread Size (inch) | Minimum Operating Temperature | Body Material | Maximum Operating Temperature | Valve Type | Plating Type | Maximum Operating Pressure | Body Size | Hex Size | Dimensional Weight | Interchange Type | Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A2C | 140 in stock | 2118 in stock | $3.57/each | EA | Male Nipple | Male NPTF | na | 1/4 - 18 | -40 °F | Steel | 250 °F | Unvalved | Zinc with clear trivalent chromate | 300 psi | 1/4 inch | 0.56 inch | 0.013329336530775381 lb | Interchangeable with ARO’s 210 series | ||
| A3C | 89 in stock | 1569 in stock | $4.20/each | EA | Male Nipple | Female NPTF | na | 1/4 - 18 | -40 °F | Steel | 250 °F | Unvalved | Zinc with clear trivalent chromate | 300 psi | 1/4 inch | 0.62 inch | 0.013329336530775381 lb | Interchangeable with ARO’s 210 series | ||
| A8C | 4 in stock | 191 in stock | $7.99/each | EA | Male Nipple | Hose barb | 1/4 | na | -40 °F | Steel | 250 °F | Unvalved | Zinc with clear trivalent chromate | 300 psi | 1/4 inch | 0.62 inch | 0.013329336530775381 lb | Interchangeable with ARO’s 210 series | ||
| A8CP | 42 in stock | 444 in stock | $8.98/each | EA | Male Nipple | Push-Lok hose barb | 1/4 | na | -40 °F | Steel | 250 °F | Unvalved | Zinc with clear trivalent chromate | 300 psi | 1/4 inch | 0.62 inch | 0.013329336530775381 lb | Interchangeable with ARO’s 210 series | ||
| B50-3BP | 18 in stock | 233 in stock | $27.17/each | EA | Female Coupler | Push-Lok hose barb | 1/4 | na | -40 °F | Brass | 250 °F | Tubular | 300 psi | 1/4 inch | 0.75 inch | 0.026658673061550762 lb | Interchangeable with ARO’s 210 series | Nitrile | ||
| B50-5BP | 3 in stock | 222 in stock | $27.60/each | EA | Female Coupler | Push-Lok hose barb | 3/8 | na | -40 °F | Brass | 250 °F | Tubular | 300 psi | 1/4 inch | 0.75 inch | 0.026658673061550762 lb | Interchangeable with ARO’s 210 series | Nitrile | ||

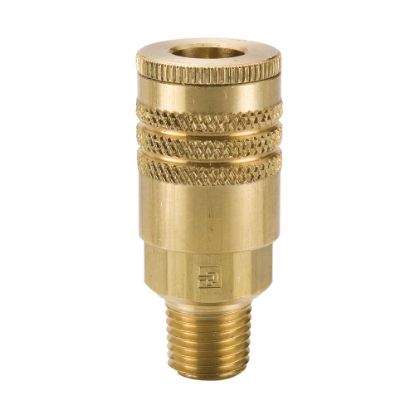

| B52 | 97 in stock | 703 in stock | $21.93/each | EA | Female Coupler | Male NPTF | na | 1/4 - 18 | -40 °F | Brass | 250 °F | Tubular | 300 psi | 1/4 inch | 0.75 inch | 0.026658673061550762 lb | Interchangeable with ARO’s 210 series | Nitrile | ||
| B52E | 4 in stock | 79 in stock | $24.50/each | EA | Female Coupler | Male NPTF | na | 3/8 - 18 | -40 °F | Brass | 250 °F | Tubular | 300 psi | 1/4 inch | 0.75 inch | 0.026658673061550762 lb | Interchangeable with ARO’s 210 series | Nitrile | ||

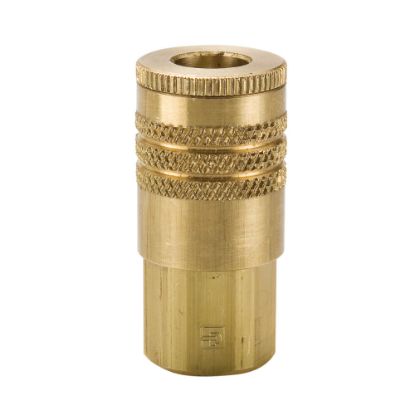

| B53 | 164 in stock | 1523 in stock | $20.78/each | EA | Female Coupler | Female NPTF | na | 1/4 - 18 | -40 °F | Brass | 250 °F | Tubular | 300 psi | 1/4 inch | 0.75 inch | 0.026658673061550762 lb | Interchangeable with ARO’s 210 series | Nitrile | ||
| B53E | Backordered | 88 in stock | $25.61/each | EA | Female Coupler | Female NPTF | na | 3/8 - 18 | -40 °F | Brass | 250 °F | Tubular | 300 psi | 1/4 inch | 0.81 inch | 0.02670863309352518 lb | Interchangeable with ARO’s 210 series | Nitrile |
