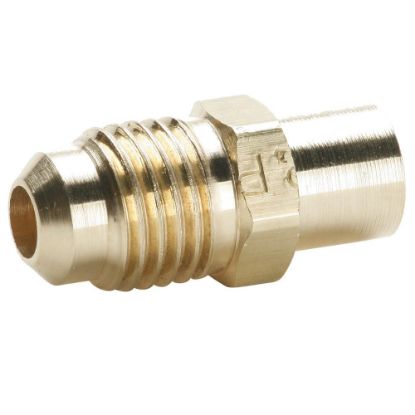

Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Type | Connection 1 Type | Connection 1 Thread Size | Connection 1 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 3 Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 2 Tube Outside Diameter | Product Style | Body Material | Maximum Operating Temperature | O-Ring Material | Minimum Operating Temperature | Dimensional Weight | Specifications Met | Media | Nut Material | Tube Material | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

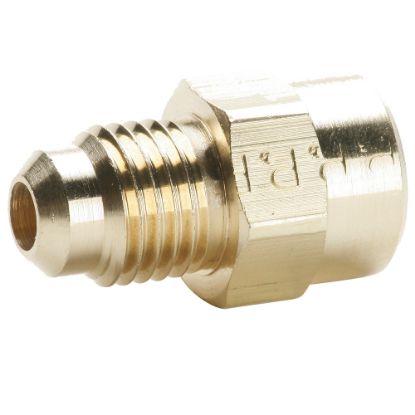

| 46F-10-12 | 1 Limited Stock | 7 in stock | $39.28/each | EA | Connector | Female Pipe | Flare | 7/8-14 inch | 5/8 inch | NA | NA | 3/4 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | 0.27594424460431655 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 650 psi | |
| 46F-10-6 | Backordered | Backordered | $19.82/each | EA | Connector | Female Pipe | Flare | 7/8-14 inch | 5/8 inch | NA | NA | 3/8 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 650 psi | ||
| 46F-10-8 | 3 in stock | 3 in stock | $9.29/each | EA | Connector | Female Pipe | Flare | 7/8-14 inch | 5/8 inch | NA | NA | 1/2 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 650 psi | ||
| 46F-2-2 | 4 in stock | 4 in stock | $15.93/each | EA | Connector | Female Pipe | Flare | 5/16-24 inch | 1/8 inch | NA | NA | 1/8 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 2,800 psi | ||
| 46F-3-2 | 9 in stock | 38 in stock | $10.03/each | EA | Connector | Female Pipe | Flare | 3/8-24 inch | 3/16 inch | NA | NA | 1/8 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,900 psi | ||
| 46F-4-2 | 153 in stock | 819 in stock | $2.74/each | EA | Connector | Female Pipe | Flare | 7/16-20 inch | 1/4 inch | NA | NA | 1/8 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | 0.12302158273381296 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | |
| 46F-4-4 | 103 in stock | 885 in stock | $5.53/each | EA | Connector | Female Pipe | Flare | 7/16-20 inch | 1/4 inch | NA | NA | 1/4 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -53 °C | 0.11362410071942446 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | |
| 46F-4-6 | Backordered | 68 in stock | $11.73/each | EA | Connector | Female Pipe | Flare | 7/16-20 inch | 1/4 inch | NA | NA | 3/8 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -65 °F | 0.27594424460431655 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | |
| 46F-5-2 | 27 in stock | 67 in stock | $8.79/each | EA | Connector | Female Pipe | Flare | 1/2-20 inch | 5/16 inch | NA | NA | 1/8 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 82.7 bar | ||
| 46F-5-4 | 96 in stock | 86 in stock | $10.56/each | EA | Connector | Female Pipe | Flare | 1/2-20 inch | 5/16 inch | NA | NA | 1/4 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,200 psi | ||
| 46F-6-2 | 6 in stock | 13 in stock | $9.20/each | EA | Connector | Female Pipe | Flare | 5/8-18 inch | 3/8 inch | NA | NA | 1/8 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | ||
| 46F-6-4 | 23 in stock | 936 in stock | $5.53/each | EA | Connector | Female Pipe | Flare | 5/8-18 inch | 3/8 inch | NA | NA | 1/4 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -53 °C | 0.11007194244604317 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | |
| 46F-6-6 | 57 in stock | 102 in stock | $8.16/each | EA | Connector | Female Pipe | Flare | 5/8-18 inch | 3/8 inch | NA | NA | 3/8 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -65 °F | 0.27594424460431655 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | |
| 46F-6-8 | 9 in stock | 83 in stock | $10.85/each | EA | Connector | Female Pipe | Flare | 5/8-18 inch | 3/8 inch | NA | NA | 1/2 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 68.9 bar | ||
| 46F-8-12 | Backordered | 1 Limited Stock | $22.98/each | EA | Connector | Female Pipe | Flare | 3/4-16 inch | 1/2 inch | NA | NA | 3/4 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -65 °F | 0.27594424460431655 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 51.7 bar | |
| 46F-8-4 | 6 in stock | 29 in stock | $9.81/each | EA | Connector | Female Pipe | Flare | 3/4-16 inch | 1/2 inch | NA | NA | 1/4 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 51.7 bar | ||
| 46F-8-6 | 6 in stock | 120 in stock | $7.65/each | EA | Connector | Female Pipe | Flare | 3/4-16 inch | 1/2 inch | NA | NA | 3/8 inch | NA | NA | Flare to Female Pipe | Brass | 250 °F | Fluorocarbon | -53 °C | 0.11037769784172662 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | |
| 46F-8-8 | 11 in stock | 425 in stock | $10.09/each | EA | Connector | Female Pipe | Flare | 3/4-16 inch | 1/2 inch | NA | NA | 1/2 inch | NA | NA | Flare to Female Pipe | Brass | 121 °C | Fluorocarbon | -65 °F | 0.11037769784172662 lb | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | |
| 485F-12-12 | Backordered | 10 in stock | $52.99/each | EA | Connector | SAE Straight Thread | Flare | 1-1/16-12 inch | 3/4 inch | NA | NA | 1-1/16-14 inch | NA | NA | Flare to Straight Thread | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 550 psi | ||
| 485F-12-8 | Backordered | Backordered | $30.62/each | EA | Connector | SAE Straight Thread | Flare | 3/4-16 inch | 3/4 inch | NA | NA | 1-1/16-14 inch | NA | NA | Flare to Straight Thread | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 37.9 bar |
