8250-16 - Pioneer Agricultural, Connect Under Pressure Quick Couplers, Breakaway Sleeve (ISO 5675) - 8200 Series -
BVGF-1C12-12F - Natural & Propane Gas Quick Couplings, ANSI Z21.41-1998 and CSA 6.9-M98 - GF Series -
4250-15 - Pioneer, Agriculture Quick Couplers, Breakaway Sleeve, ISO 5675 / ISO 7241 - 4200 Series
Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly.
Use with the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• Vinyl
Markets:
• Dental
• Packaging
• Car Wash
• Printing
• Machine tools
Features/Benefits:
• Designed for use with thermoplastic tubing
• Machined in tube support
• Black acetal copolymer sleeve
• Brass sleeve available for soft metal tubing
• Knurled nut for ease of hand tightening
• Pre-assembled fitting
• Chrome plated and stainless steel couplers available
Applications:
• Pneumatic circuits
• Coolant lines
• Measuring
• Water lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Style | Connection 2 Thread Size (inch) | Shape | Connection 2 Tube O.D. (inch) | Connection 1 Tube O.D. (inch) | Style | Connection 1 Style | Body Material | Minimum Operating Temperature | Maximum Operating Temperature | Maximum Operating Pressure | Nut Material | Tube Material | Sleeve Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

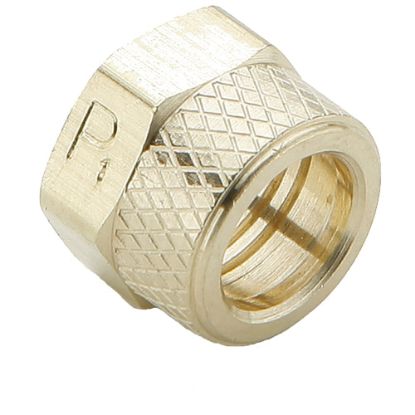

| 61PN-5 | 17 in stock | 48 in stock | $2.09/each | EA | na | na | Nut | na | 5/16 | Tube | Tube | Brass | 0 °F | 65 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 61PN-6 | 14 in stock | 114 in stock | $2.30/each | EA | na | na | Nut | na | 3/8 | Tube | Tube | Brass | -17 °C | 150 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 61PN-8 | 20 in stock | 143 in stock | $3.36/each | EA | na | na | Nut | na | 1/2 | Tube | Tube | Brass | 0 °F | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||

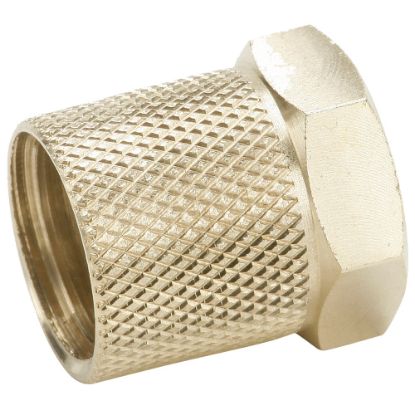

| 61PSGN-4 | Backordered | Backordered | $8.98/each | EA | na | na | Spring Guard Nut | na | 1/4 | Tube | Tube | Brass | -17 °C | 150 °F | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 61PSGN-6 | Backordered | Backordered | $10.89/each | EA | na | na | Spring Guard Nut | na | 3/8 | Tube | Tube | Brass | -17 °C | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||

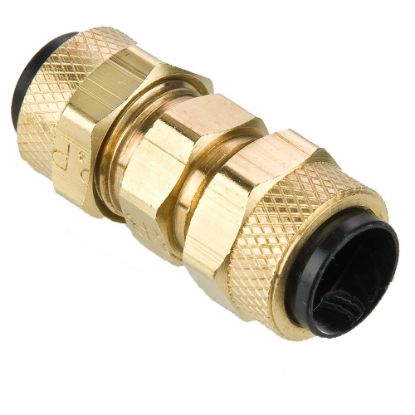

| 62P-4 | 82 in stock | 466 in stock | $7.25/each | EA | Compression | na | Union | 1/4 | 1/4 | Tube to Tube | Compression | Brass | -17 °C | 65 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.027594424460431654 lb | |
| 62P-5 | 2 Limited Stock | 22 in stock | $9.47/each | EA | Compression | na | Union | 5/16 | 5/16 | Tube to Tube | Compression | Brass | -17 °C | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 62P-6 | 24 in stock | 411 in stock | $9.28/each | EA | Compression | na | Union | 3/8 | 3/8 | Tube to Tube | Compression | Brass | -17 °C | 150 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 62P-6-4 | 6 in stock | 94 in stock | $12.07/each | EA | Compression | na | Union | 1/4 | 3/8 | Tube to Tube | Compression | Brass | -17 °C | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 62P-8 | 13 in stock | 131 in stock | $14.79/each | EA | Compression | na | Union | 1/2 | 1/2 | Tube to Tube | Compression | Brass | 0 °F | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |

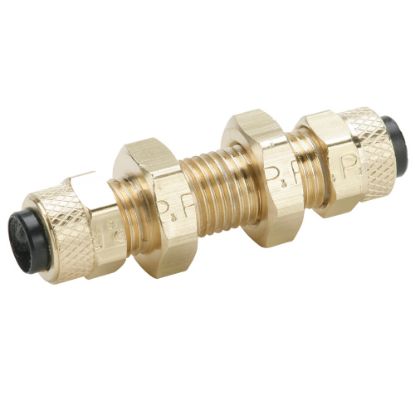

| 62PBH-4 | 43 in stock | 110 in stock | $15.74/each | EA | Compression | na | Bulkhead | 1/4 | 1/4 | Tube to Tube | Compression | Brass | -17 °C | 150 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.11037769784172662 lb | |
| 62PBH-5 | 8 in stock | 23 in stock | $28.07/each | EA | Compression | na | Bulkhead | 5/16 | 5/16 | Tube to Tube | Compression | Brass | -17 °C | 150 °F | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 62PBH-6 | 21 in stock | 248 in stock | $18.21/each | EA | Compression | na | Bulkhead | 3/8 | 3/8 | Tube to Tube | Compression | Brass | 0 °F | 65 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 62PBH-8 | 23 in stock | 20 in stock | $40.27/each | EA | Compression | na | Bulkhead | 1/2 | 1/2 | Tube to Tube | Compression | Brass | -17 °C | 150 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||

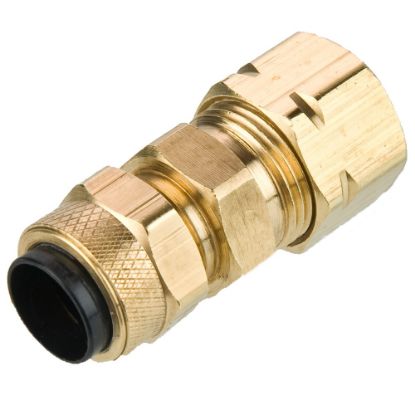

| 62PCA-4 | Backordered | 80 in stock | $9.75/each | EA | Compression | na | Union | 1/4 | 1/4 | Tube to Poly-Tite | Compression | Brass | 0 °F | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 62PCA-5 | Backordered | Backordered | $12.59/each | EA | Compression | na | Union | 5/16 | 5/16 | Tube to Poly-Tite | Compression | Brass | -17 °C | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 62PCA-6 | 4 in stock | 8 in stock | $17.13/each | EA | Compression | na | Union | 3/8 | 3/8 | Tube to Poly-Tite | Compression | Brass | -17 °C | 150 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||

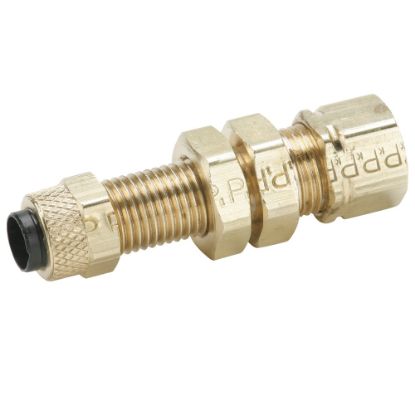

| 62PCABH-4 | 19 in stock | 44 in stock | $16.15/each | EA | Compression | na | Bulkhead | 1/4 | 1/4 | Tube to Compression | Compression | Brass | -17 °C | 65 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 62PCABH-6 | 9 in stock | 46 in stock | $23.32/each | EA | Compression | na | Bulkhead | 3/8 | 3/8 | Tube to Compression | Compression | Brass | 0 °F | 150 °F | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 62PTBH-4 | 20 in stock | 1592 in stock | $12.13/each | EA | Straight Thread | 3/8-24 | Bulkhead | na | 1/4 | Tube to Straight thread | Compression | Brass | 0 °F | 65 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.11037769784172662 lb |
