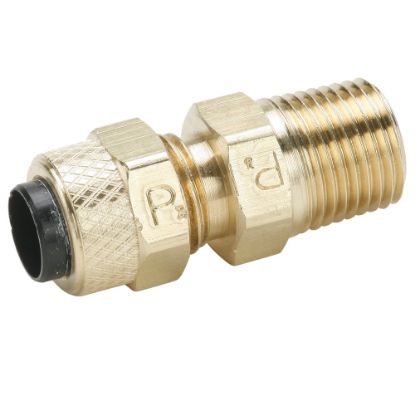

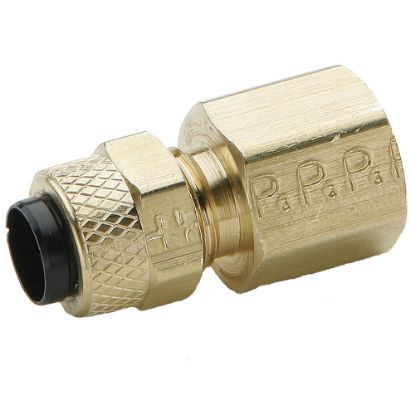

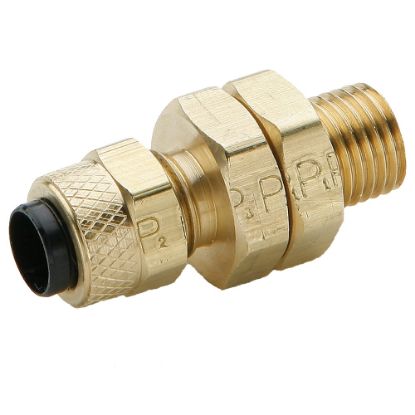

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly.
Use with the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• Vinyl
Markets:
• Dental
• Packaging
• Car Wash
• Printing
• Machine tools
Features/Benefits:
• Designed for use with thermoplastic tubing
• Machined in tube support
• Black acetal copolymer sleeve
• Brass sleeve available for soft metal tubing
• Knurled nut for ease of hand tightening
• Pre-assembled fitting
• Chrome plated and stainless steel couplers available
Applications:
• Pneumatic circuits
• Coolant lines
• Measuring
• Water lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Tube O.D. (inch) | Connection 1 Style | Connection 1 Tube O.D. (inch) | Style | Connection 2 Style | Connection 2 Thread Size (inch) | Body Material | Maximum Operating Temperature | Minimum Operating Temperature | Maximum Operating Pressure | Nut Material | Tube Material | Sleeve Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62PTBH-5 | Backordered | Backordered | $17.23/each | EA | Bulkhead | na | Compression | 5/16 | Tube to Straight thread | Straight Thread | 7/16-24 | Brass | 150 °F | 0 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 62PTBH-6 | Backordered | Backordered | $21.12/each | EA | Bulkhead | na | Compression | 3/8 | Tube to Straight thread | Straight Thread | 1/2-24 | Brass | 150 °F | 0 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 66P-4-2 | 4 in stock | 111 in stock | $4.47/each | EA | Connector | na | Compression | 1/4 | Tube to Female Pipe | Female Pipe | 1/8 | Brass | 150 °F | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 66P-4-4 | 29 in stock | 701 in stock | $6.85/each | EA | Connector | na | Compression | 1/4 | Tube to Female Pipe | Female Pipe | 1/4 | Brass | 65 °C | 0 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 66P-5-2 | 31 in stock | 5 in stock | $8.17/each | EA | Connector | na | Compression | 5/16 | Tube to Female Pipe | Female Pipe | 1/8 | Brass | 150 °F | 0 °F | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 66P-6-4 | 33 in stock | 621 in stock | $7.25/each | EA | Connector | na | Compression | 3/8 | Tube to Female Pipe | Female Pipe | 1/4 | Brass | 65 °C | -17 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 66P-8-6 | 19 in stock | 52 in stock | $15.33/each | EA | Connector | na | Compression | 1/2 | Tube to Female Pipe | Female Pipe | 3/8 | Brass | 150 °F | 0 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 68P-4-1 | 42 in stock | 104 in stock | $11.19/each | EA | Connector | na | Compression | 1/4 | Tube to Pipe | Male Pipe | 1/16 | Brass | 150 °F | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.11037769784172662 lb | |
| 68P-4-10X32 | Backordered | 5 in stock | $13.21/each | EA | Connector | na | Compression | 1/4 | Tube to Pipe | Straight Thread | 10-32 | Brass | 150 °F | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.11037769784172662 lb | |
| 68P-4-2 | 9 in stock | 2071 in stock | $4.12/each | EA | Connector | na | Compression | 1/4 | Tube to Pipe | Male Pipe | 1/8 | Brass | 150 °F | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.027594424460431654 lb | |
| 68P-4-4 | 26 in stock | 2461 in stock | $5.05/each | EA | Connector | na | Compression | 1/4 | Tube to Pipe | Male Pipe | 1/4 | Brass | 65 °C | 0 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.027594424460431654 lb | |
| 68P-4-6 | 27 in stock | 327 in stock | $9.59/each | EA | Connector | na | Compression | 1/4 | Tube to Pipe | Male Pipe | 3/8 | Brass | 65 °C | 0 °F | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 68P-5-2 | 36 in stock | 33 in stock | $5.70/each | EA | Connector | na | Compression | 5/16 | Tube to Pipe | Male Pipe | 1/8 | Brass | 150 °F | 0 °F | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 68P-5-4 | 389 in stock | 10 in stock | $8.20/each | EA | Connector | na | Compression | 5/16 | Tube to Pipe | Male Pipe | 1/4 | Brass | 150 °F | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 68P-6-2 | 30 in stock | 451 in stock | $5.64/each | EA | Connector | na | Compression | 3/8 | Tube to Pipe | Male Pipe | 1/8 | Brass | 65 °C | 0 °F | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 68P-6-4 | 100 in stock | 658 in stock | $5.80/each | EA | Connector | na | Compression | 3/8 | Tube to Pipe | Male Pipe | 1/4 | Brass | 150 °F | -17 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.027594424460431654 lb | |
| 68P-6-6 | 27 in stock | 505 in stock | $7.04/each | EA | Connector | na | Compression | 3/8 | Tube to Pipe | Male Pipe | 3/8 | Brass | 65 °C | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 68P-8-4 | 7 in stock | 4 in stock | $14.85/each | EA | Connector | na | Compression | 1/2 | Tube to Pipe | Male Pipe | 1/4 | Brass | 65 °C | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | ||
| 68P-8-6 | 64 in stock | 141 in stock | $8.82/each | EA | Connector | na | Compression | 1/2 | Tube to Pipe | Male Pipe | 3/8 | Brass | 65 °C | -17 °C | 10 bar | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer | 0.27594424460431655 lb | |
| 97P-4-6 | Backordered | Backordered | $30.79/each | EA | Tube Reducer | na | Compression | 1/4 | Tube to Standpipe | Tube Stem | 3/8 | Brass | 150 °F | -17 °C | 150 psi | Brass | Polyethylene, Nylon, Polypropylene, Vinyl | Brass, Acetal Copolymer |
