Brass Inverted Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. These fittings are well adapted for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Inverted Flare fittings provide excellent vibration resistance. All fittings meet functional requirements of SAE J512.
Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or fscsales@parker.com for additional information.
Read More...Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or fscsales@parker.com for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Tube O.D. (inch) | Connection 1 Tube O.D. (inch) | Connection 2 Style | Connection 2 Thread Size (inch) | Connection 1 Style | Style | Body Material | Maximum Operating Temperature | Minimum Operating Temperature | Media | Tube Material | Maximum Operating Pressure | Specifications Met | Nut Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 249IFHD-8-6 | 3 in stock | 19 in stock | $13.41/each | EA | 90° Elbow | na | 1/2 | Male Pipe | 3/8 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 52 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 249IFHD-8-8 | 4 in stock | 63 in stock | $23.68/each | EA | 90° Elbow | na | 1/2 | Male Pipe | 1/2 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | SAE J512 | Brass, Zinc Chromate Steel | |

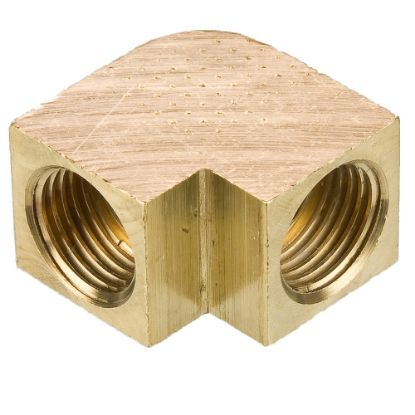

| 250IFHD-3-2 | 5 in stock | 2 Limited Stock | $63.88/each | EA | 90° Elbow | na | 3/16 | Female Pipe | 1/8 | Inverted Flare | Flare to Female Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 131 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 250IFHD-4-2 | 8 in stock | Backordered | $28.95/each | EA | 90° Elbow | na | 1/4 | Female Pipe | 1/8 | Inverted Flare | Flare to Female Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 250IFHD-5-2 | 4 in stock | Backordered | POR | EA | 90° Elbow | na | 5/16 | Female Pipe | 1/8 | Inverted Flare | Flare to Female Pipe | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1200 psi | SAE J512 | Brass, Zinc Chromate Steel | |
| 250IFHD-6-4 | 2 Limited Stock | Backordered | $38.63/each | EA | 90° Elbow | na | 3/8 | Female Pipe | 1/4 | Inverted Flare | Flare to Female Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1000 psi | SAE J512 | Brass, Zinc Chromate Steel | |

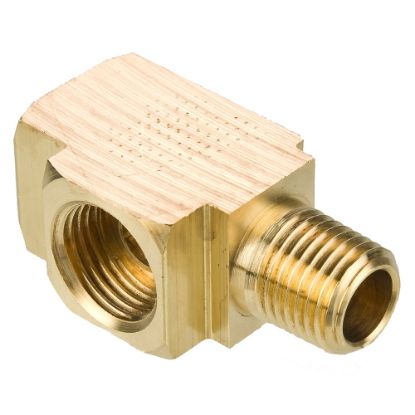

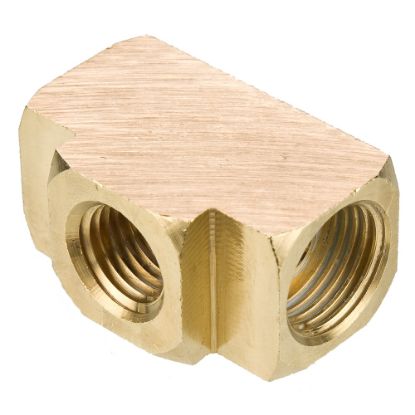

| 251IFHD-3-2 | Backordered | 4 in stock | $20.32/each | EA | Run Tee | na | 3/16 | Male Pipe | 1/8 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 131 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 251IFHD-5-2 | 1 Limited Stock | Backordered | $37.32/each | EA | Run Tee | na | 5/16 | Male Pipe | 1/8 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 83 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 251IFHD-6-4 | 10 in stock | Backordered | $29.38/each | EA | Run Tee | na | 3/8 | Male Pipe | 1/4 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 69 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 252IFHD-5-2 | 1 Limited Stock | Backordered | $19.90/each | EA | Branch Tee | na | 5/16 | Male Pipe | 1/8 | Inverted Flare | Flare to Female Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 83 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 252IFHD-6-4 | 12 in stock | 15 in stock | $25.80/each | EA | Branch Tee | na | 3/8 | Male Pipe | 1/4 | Inverted Flare | Flare to Female Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1000 psi | SAE J512 | Brass, Zinc Chromate Steel | |

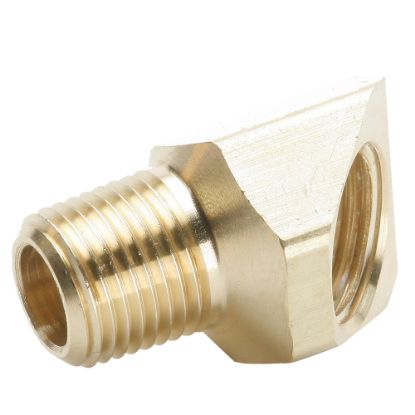

| 259IFHD-10-8 | Backordered | Backordered | $39.50/each | EA | 45° Elbow | na | 5/8 | Male Pipe | 1/2 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 45 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 259IFHD-3-2 | 1 Limited Stock | 25 in stock | $27.52/each | EA | 45° Elbow | na | 3/16 | Male Pipe | 1/8 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 131 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 259IFHD-4-2 | 3 in stock | 9 in stock | $20.86/each | EA | 45° Elbow | na | 1/4 | Male Pipe | 1/8 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 259IFHD-5-2 | Backordered | 24 in stock | $20.86/each | EA | 45° Elbow | na | 5/16 | Male Pipe | 1/8 | Inverted Flare | Flare to Pipe | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 83 bar | SAE J512 | Brass, Zinc Chromate Steel | |
| 259IFHD-5-4 | 18 in stock | 25 in stock | $27.87/each | EA | 45° Elbow | na | 5/16 | Male Pipe | 1/4 | Inverted Flare | Flare to Pipe | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1200 psi | SAE J512 | Brass, Zinc Chromate Steel | |
| 259IFHD-6-4 | 3 in stock | 43 in stock | $26.22/each | EA | 45° Elbow | na | 3/8 | Male Pipe | 1/4 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1000 psi | SAE J512 | Brass, Zinc Chromate Steel | |
| 259IFHD-8-6 | Backordered | 7 in stock | $31.57/each | EA | 45° Elbow | na | 1/2 | Male Pipe | 3/8 | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | SAE J512 | Brass, Zinc Chromate Steel | |

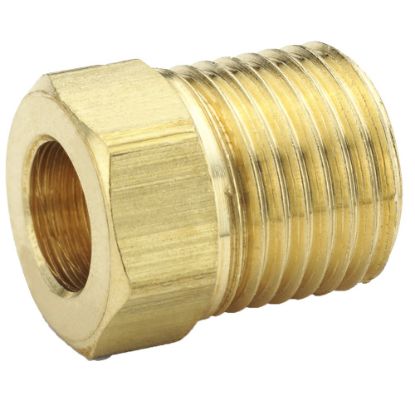

| 41IF-2 | Backordered | 71 in stock | $6.06/each | EA | Nut | na | 1/8 | na | na | Inverted Flare | Flare | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 2800 psi | SAE J512 | Brass, Zinc Chromate Steel | |
| 41IF-3 | Backordered | 420 in stock | $1.63/each | EA | Nut | na | 3/16 | na | na | Inverted Flare | Flare | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1900 psi | SAE J512 | Brass, Zinc Chromate Steel |
