Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 3 Style | Connection 3 Thread Size (inch) | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Connection 1 Style | Style | Shape | Connection 2 Style | Connection 2 Thread Size (inch) | Body Material | Maximum Operating Pressure | Minimum Operating Temperature | Tube Material | Maximum Operating Temperature | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27-1 | 49 in stock | 167 in stock | $6.98/each | EA | na | na | 1/8 | na | Barb | Tube to Pipe | Barbed Male Connector | UNF | 10-32 | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | ||
| 27-2 | Backordered | 376 in stock | $7.40/each | EA | na | na | 1/4 | na | Barb | Tube to Pipe | Barbed Male Connector | UNF | 10-32 | Brass | 150 psi | -53 °C | Polyethylene | 90 °F | 0.027594424460431654 lb | |

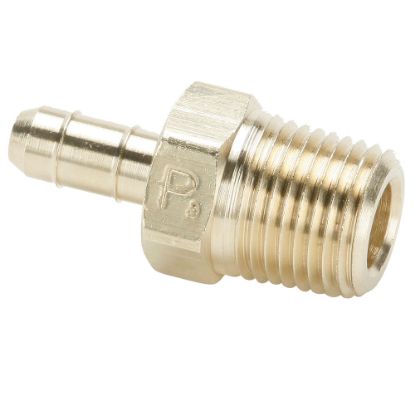

| 28-4-1 | 40 in stock | 374 in stock | $3.72/each | EA | na | na | 1/4 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/16 | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | 0.054433633093525176 lb | |
| 28-4-10X32 | 1 Limited Stock | 5145 in stock | $3.12/each | EA | na | na | 1/4 | na | Barb | Tube to Pipe | Connector | UNF | 10-32 | Brass | 150 psi | -65 °F | Polyethylene | 90 °F | 0.05518884892086331 lb | |
| 28-4-2 | 378 in stock | 1936 in stock | $2.49/each | EA | na | na | 1/4 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/8 | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | 0.027594424460431654 lb | |
| 28-4-4 | 119 in stock | 91 in stock | $4.36/each | EA | na | na | 1/4 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/4 | Brass | 150 psi | -65 °F | Polyethylene | 90 °F | 0.027594424460431654 lb | |

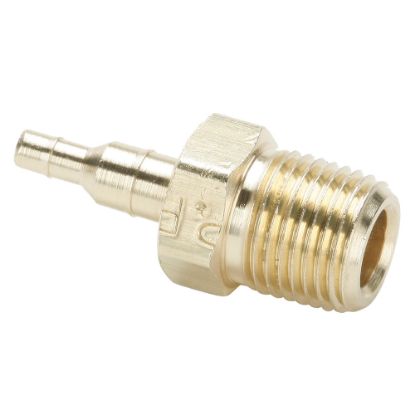

| 28-4-5/32-2 | Backordered | 116 in stock | $6.03/each | EA | Male Pipe | 1/8 | 1/4 | 5/32 | Barb | Tube to Pipe | Connector | Male Pipe | na | Brass | 150 psi | -53 °C | Polyethylene | 90 °F | ||
| 28-5/32-2 | Backordered | 472 in stock | $5.21/each | EA | na | na | 5/32 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/8 | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | 0.027594424460431654 lb | |
| 28-6-2 | 122 in stock | 908 in stock | $3.91/each | EA | na | na | 3/8 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/8 | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | 0.027594424460431654 lb | |
| 28-6-4 | 16 in stock | 97 in stock | $5.40/each | EA | na | na | 3/8 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/4 | Brass | 10 bar | -53 °C | Polyethylene | 32 °C | 0.05518884892086331 lb | |
| 28-8-4 | 2313 in stock | 56 in stock | $4.64/each | EA | na | na | 1/2 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/4 | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | 0.11362410071942446 lb | |
| 28-8-6 | Backordered | 32 in stock | $9.33/each | EA | na | na | 1/2 | na | Barb | Tube to Pipe | Connector | Male Pipe | 3/8 | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | ||
| 28-8-8 | Backordered | 58 in stock | $12.10/each | EA | na | na | 1/2 | na | Barb | Tube to Pipe | Connector | Male Pipe | 1/2 | Brass | 150 psi | -65 °F | Polyethylene | 90 °F | 0.2904676258992806 lb |
